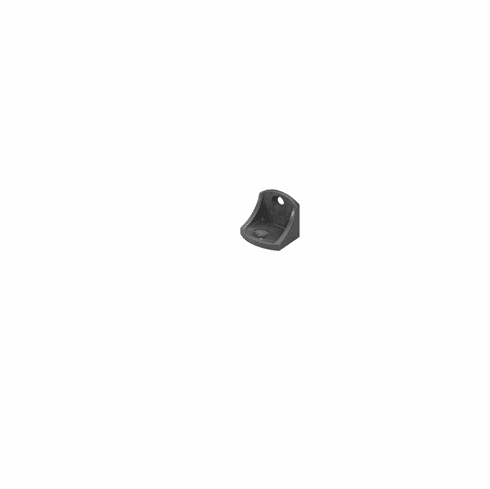

Hafele 260.24.117 Corner Bracket, plastic, brown, 23mm x 23mm x 24mm
Product Information
Description
Manufacturer: Hafele
Item: 260.24.117
Product Title: Angle Bracket, Plastic, Brown
Category: Angle Bracket, Plastic,
Item Details …
- Uses flat head #8 screws

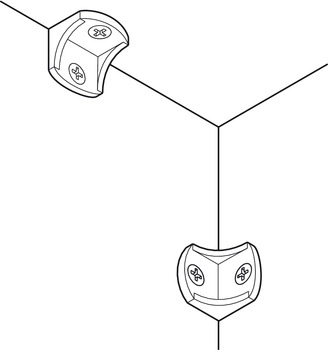

- These small, inconspicuous brackets allow easy screw mounting of various furniture components including back panels and rails. No boring is required due to surface mounting.
- Material : Plastic

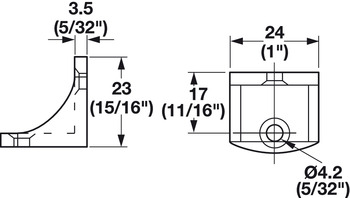

- Leg length : 23?/?23 mm
- Width : 24.00 mm
- Area of application : For furniture assembly
- Material thickness : 3.50 mmData Sheet
