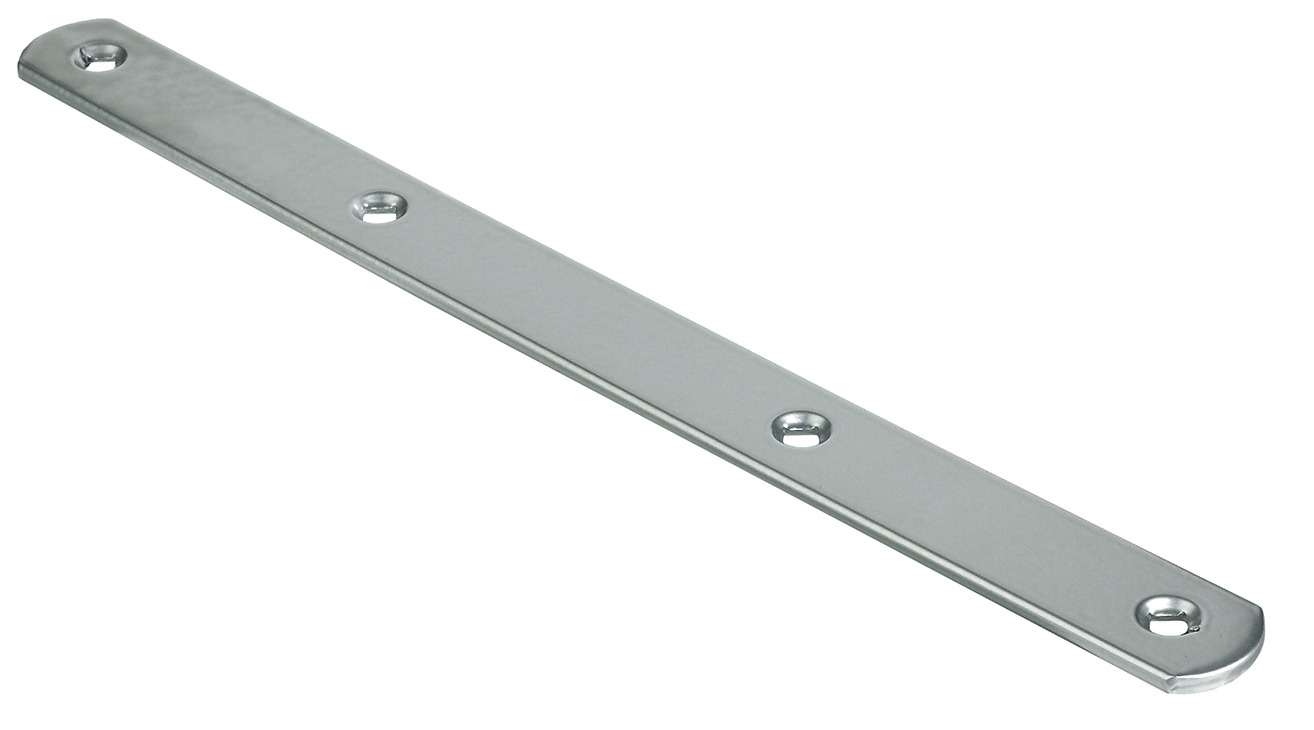

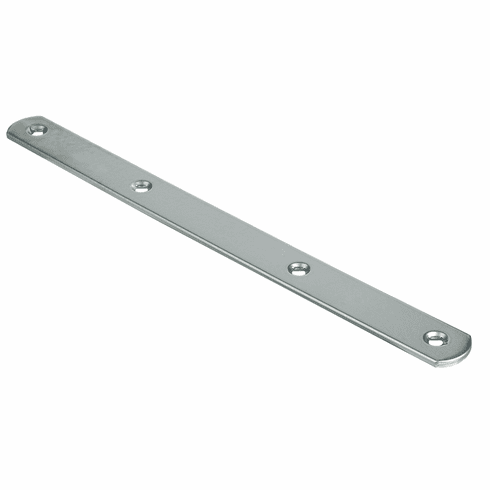

Hafele 260.22.700 Connecting Bracket, steel, white, 9", 230mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 260.22.700

  Product Title: Door Panel Connector, Steel, Steel, White

  Category: Door Panel Connector, Steel, Steel, White

  Item Details …

  - Material : Steel

  - Color/finish : White, lacquered

  - Screw holes : Uniform front view

  - Length x width mm : 230 x 20 mm

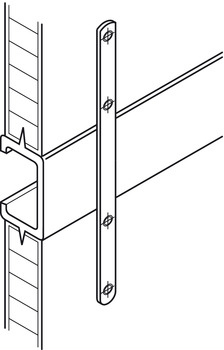

  - Area of application : Use in base cabinets without drawer door, in stacked panel installations

  - Material thickness : 3.00 mm

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.73



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.114-11.115.pdf

  Hafele 260.22.700, 260-22-700, 26022700, 260.22


  Specifications/Hafele Catalog - Page# FC11.122: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
