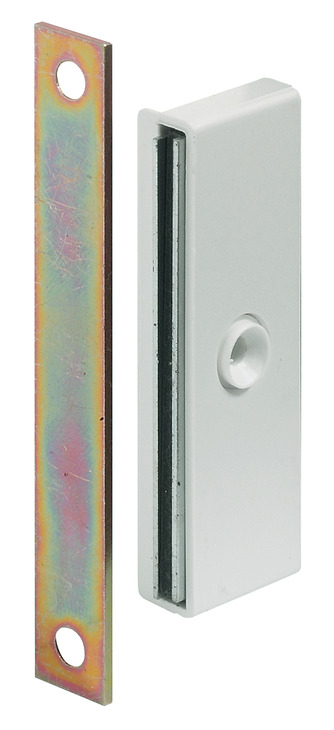

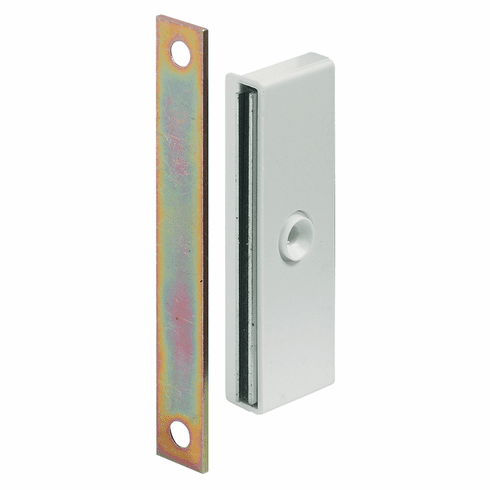

Hafele 246.50.708 Magnetic Catch, Flat Design, Adjustable, 5 kg Pull White

Product Information

• Description

  Manufacturer: Hafele
  Item: 246.50.708

  Product Title: Magnetic Catch, Flat Design, Adjustable, 5 kg Pull, White

  Category: Magnetic Catch, Flat Design, Adjustable, 5 kg Pull,

  Item Details …

  - Use #4 flat head screw

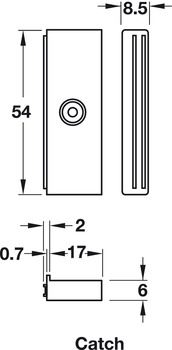

  - Flat (only 6 mm high)

  - Adjustable

  - Floating poles

  - Catch: fixed

  - Pull Force (kg) : 5 kg

  - Version : Movable housingrigid counterpiece

  - Area of application : For wooden doors

  - Material : Catch: PlasticStrike: Steel

  - Adjustment facility : Shaped edge

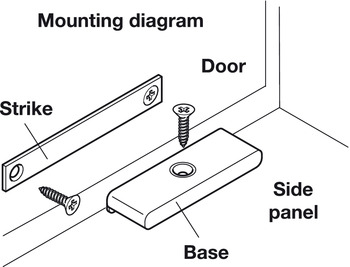

  - Installation : Screw-mounted

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.114



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.84-11.89.pdf

  Hafele 246.50.708, 246-50-708, 24650708, 246.50


  Specifications/Hafele Catalog - Page# FC11.93: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
