Hafele 246.29.712 Magnetic Catch, 4-5 kg Pull White

Product Information

• Description

  Manufacturer: Hafele
  Item: 246.29.712

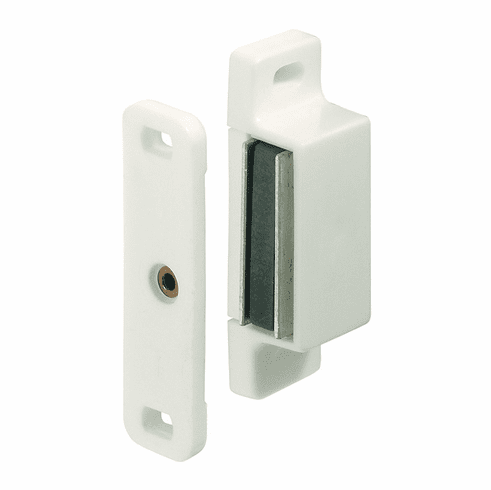

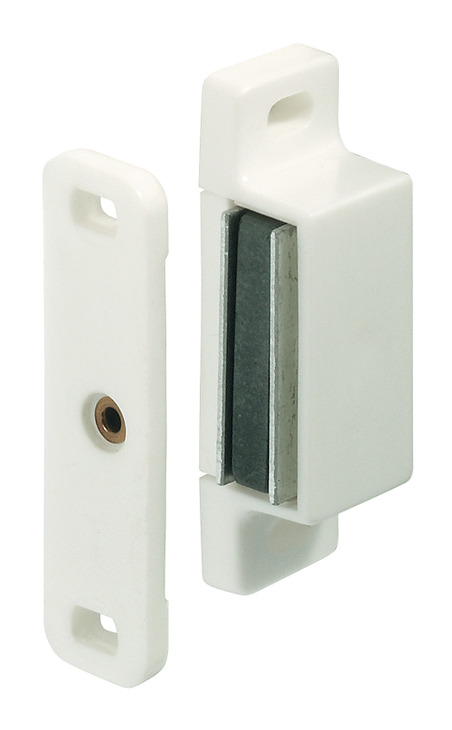

  Product Title: Magnetic Catch, 4-5 kg Pull, For screw fixing, White

  Category: Magnetic Catch, 4-5 kg Pull, For screw fixing

  Item Details …

  - Use #4 flat head screw for strike plate, #4 pan head screw for catch

  - Pull Force (kg) : 4 – 5 kg

  - Version : Catch: floating; Strike: fixed

  - Area of application : For wooden doors

  - Material : Catch: Plastic; Strike: Steel

  - Adjustment facility : slot

  - Installation : Screw

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.115



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.84-11.89.pdf

  Hafele 246.29.712, 246-29-712, 24629712, 246.29
