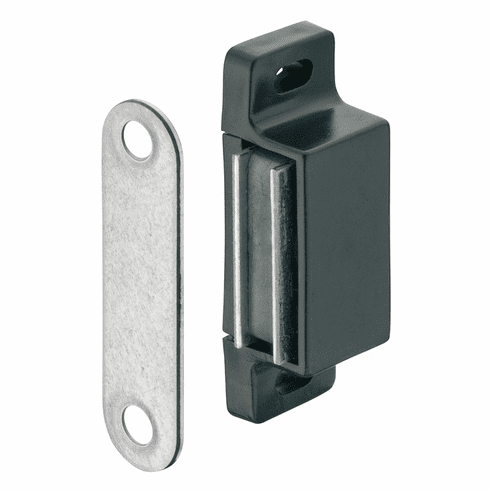

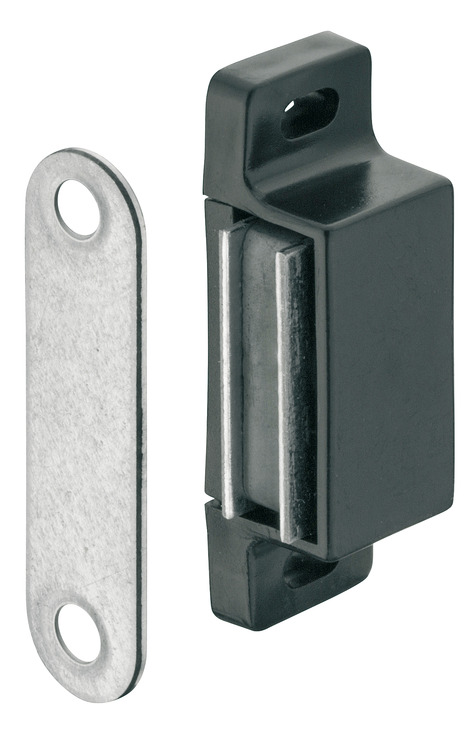

Hafele 246.29.301 Magnetic Catch, with strike, plastic, black, 4-5KG

Product Information

• Description

  Manufacturer: Hafele
  Item: 246.29.301

  Product Title: Magnetic Catch, 3 - 4 kg Pull, For screw fixing, Black

  Category: Magnetic Catch, 3 - 4 kg Pull, For screw fixing

  Item Details …

  - Use #4 flat head screw for strike plate, #4 pan head screw for catch

  - Floating permanent magnet poles catch adjust automatically to meet door-mounted strike

  - Pull Force (kg) : 3 – 4 kg

  - Version : Catch: floatingStrike: fixed

  - Area of application : For wooden doors

  - Material : Catch: PlasticStrike: Steel

  - Installation : Screw

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.115



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.84-11.89.pdf

  Hafele 246.29.301, 246-29-301, 24629301, 246.29


  Specifications/Hafele Catalog - Page# FC11.91: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
