Hafele 246.28.700 Magnetic Catch, plastic, white, 2.5KG

Product Information

• Description

  Manufacturer: Hafele
  Item: 246.28.700

  Product Title: Magnetic Catch, 2.5 kg Pull, White

  Category: Magnetic Catch, 2.5 kg Pull,

  Item Details …

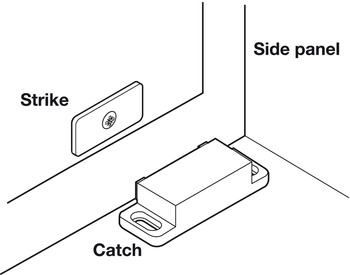

  - Use #4 flat head screw for strike plate, #4 pan head screw for catch

  - The most economical magnetic catch

  - Extremely flexible floating plates to compensate for alignment tolerances

  - Pull Force (kg) : 2.5 kg

  - Version : Catch: floatingStrike: fixed

  - Material : Catch: PlasticStrike: Steel

  - Installation : Screw

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.115



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.84-11.89.pdf

  Hafele 246.28.700, 246-28-700, 24628700, 246.28


  Specifications/Hafele Catalog - Page# FC11.91: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
