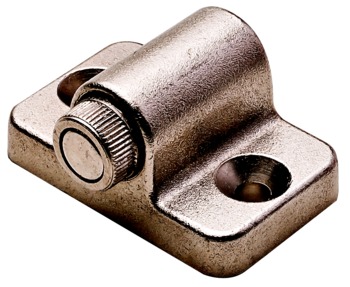

Hafele 246.15.600 Magnetic Catch, with Adjustable Magnet Holding power approximately 2 kg (4.4 lbs), Matt nickel

Product Information

• Description

  Manufacturer: Hafele
  Item: 246.15.600

  Product Title: Magnetic Catch, with Adjustable Magnet, Holding power approximately 2 kg (4.4 lbs), Matt nickel

  Category: Magnetic Catch, with Adjustable Magnet, Holding power approximately 2 kg (4.4 lbs)

  Item Details …

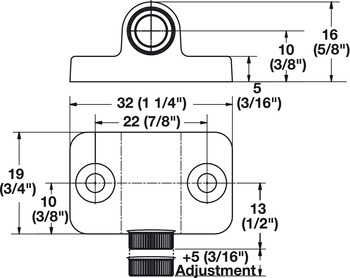

  - Magnet adjustment range: 5 mm (3/16")

  - A high-end magnetic catch specifically designed by Häfele

  - Primary application is high-quality traditional cabinetry with inset doors, utilizing free-swinging decorative butt hinges

  - Rounded soft shape

  - Metal casing and plated finish offer a high-end look and feel

  - Easy and intuitive in/out adjustment is achieved by turning the magnet; no need to loosen screws, adjust and re-tighten

  - Matching strike plates and screws are available, please order separately

  - Pull Force (kg) : 2 kg

  - Material : Housing: ZincCore: SteelMagnet: Neodynium

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.117



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.84-11.89.pdf
