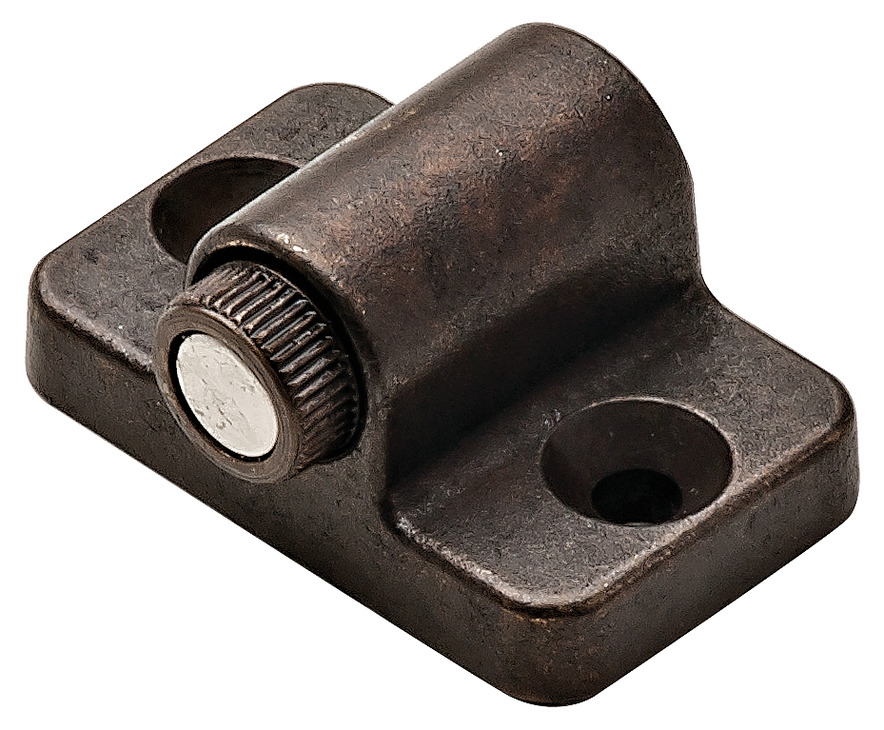

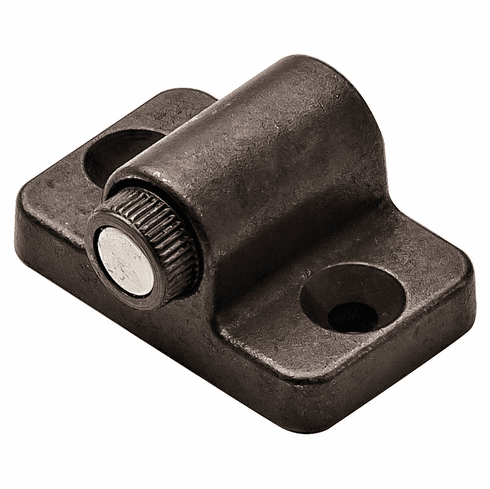

Hafele 246.15.100 Magnetic Catch, with Adjustable Magnet Holding power approximately 2 kg (4.4 lbs), Oil rubbed bronze

Product Information

• Description

  Manufacturer: Hafele
  Item: 246.15.100

  Product Title: Magnetic Catch, with Adjustable Magnet, Holding power approximately 2 kg (4.4 lbs), Oil rubbed bronze

  Category: Magnetic Catch, with Adjustable Magnet, Holding power approximately 2 kg (4.4 lbs)

  Item Details …

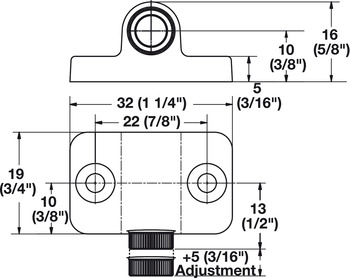

  - Magnet adjustment range: 5 mm (3/16")

  - A high-end magnetic catch specifically designed by Häfele

  - Primary application is high-quality traditional cabinetry with inset doors, utilizing free-swinging decorative butt hinges

  - Rounded soft shape

  - Metal casing and plated finish offer a high-end look and feel

  - Easy and intuitive in/out adjustment is achieved by turning the magnet; no need to loosen screws, adjust and re-tighten

  - Matching strike plates and screws are available, please order separately

  - Pull Force (kg) : 2 kg

  - Material : Housing: ZincCore: SteelMagnet: Neodynium

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.117



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.84-11.89.pdf

  Hafele 246.15.100, 246-15-100, 24615100, 246.15


  Specifications/Hafele Catalog - Page# FC11.90: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Wood Screw, Flat Head Countersunk, Phillips Drive
  • Screws, for Magnetic Catch
  • Strike Plate, for Magnetic Catch
  • Spacer, for Strike Plate
