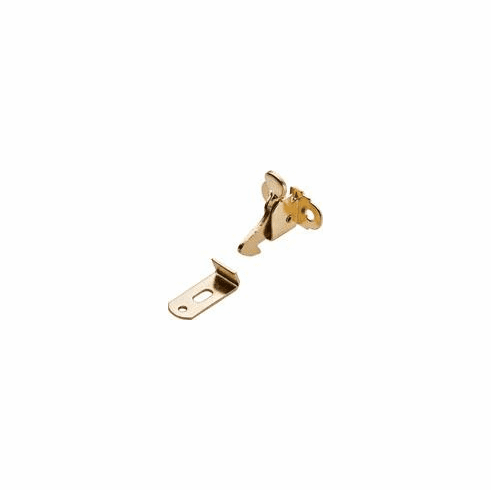

Hafele 245.70.509 Elbow Catch, Economy Model, Steel Brass plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 245.70.509

  Product Title: Elbow Catch, Economy Model, Steel, Brass plated

  Category: Elbow Catch, Economy Model, Steel,

  Item Details …

  - Material : Steel

  - Installation : Screw-mountedUse #6 pan head screw

  - Adjustment facility : slot

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.135



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.105-11.105.pdf

  Hafele 245.70.509, 245-70-509, 24570509, 245.70
