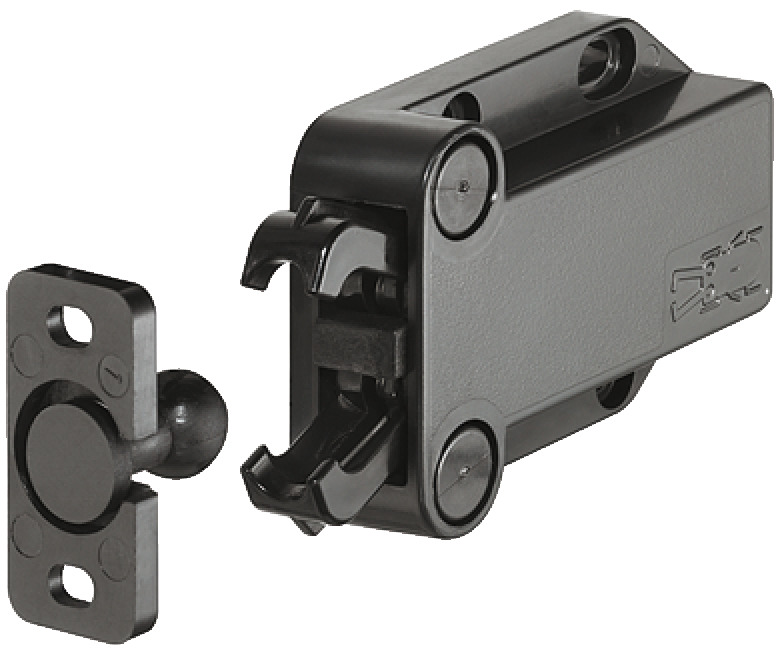

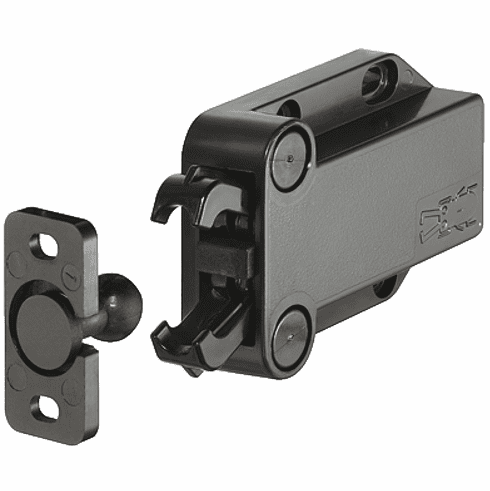

Hafele 245.50.301 Touch Latch MC-37/BLK-1, non-magnetic, plastic, black
Product Information
Description
Manufacturer: Hafele
Item: 245.50.301
Product Title: Pressure Catch, 8 kg Pull, Black
Category: Pressure Catch, 8 kg Pull, Black
Item Details …
- Based on the same concept as that of a magnetic catch
- A gentle push is all is takes to open or close door
- Especially suited for use where magnets would be harmful such as near computer tapes and disk storage
- Cannot be pulled or pushed open from the inside by falling objects
- Color/finish : Black
- Area of application : For hinged doors, suitable for tip-on opening
- Material : Plastic

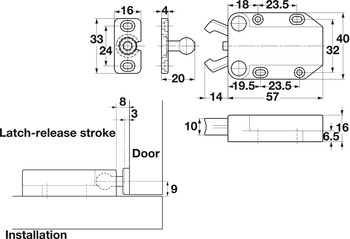

- Installation : For screw fixing

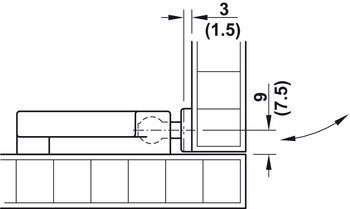

- Functionality : Push the door gently to release the spring mechanism, the door opens slightlyto lock, push door as far as it will go, the spring mechanism is tensioned and locks the door
- Supplied with:
- 6 screwsData Sheet
Product Resources
Specifications
For detailed PDF specifications, click:
Hafele Catalog Page: selection_11.97-11.98.pdfHafele 245.50.301, 245-50-301, 24550301, 245.50
Specifications/Hafele Catalog - Page# FC11.103:
Click to: Show catalog here ...
Click to: Show catalog in a new page.
