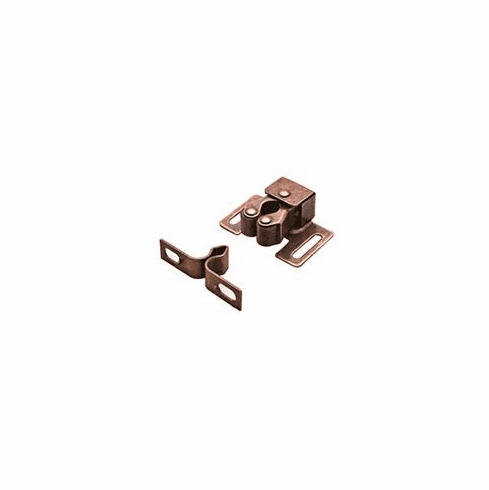

Hafele 244.04.100 Twin Roller Catch, steel, bronzed (each)
DescriptionHafele 244.04.100 Double Roller Catch, Low Back
Finish : Bronzed Features : With oblong holes on catch and strike for wide adjustment range Application : Can be used on face frames Material : Roller: Nylon
Strike and Catch: Steel

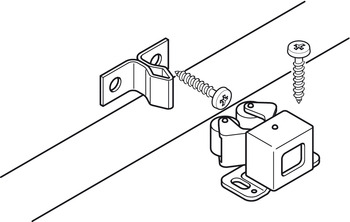

Mounting : Use #4 pan head screw
SpecificationsFor detailed PDF specifications, click:
Hafele Catalog Page: selection_11.101-11.102.pdf
Hafele 244.04.100, 244-04-100, 24404100, 244.04 Specifications/Hafele Catalog - Page# FC11.108:
Click to: Show catalog here ...
Click to: Show catalog in a new page.
Return to: Hafele Connectors & Shelf Supports Catalog
Return to: All Hafele Catalogs
Adobe PDF Reader
Quick Metric Conversions: 25mm = 1 inch (approx), 2.5cm = 1 inch (approx), 96mm = 3.75 inches
