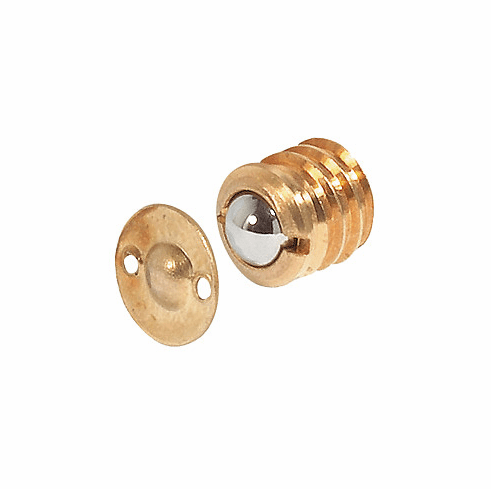

Hafele 241.86.114 Ball Catch, with Strike, Screw-Mounted External : 12 mm, internal : 10.8 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 241.86.114

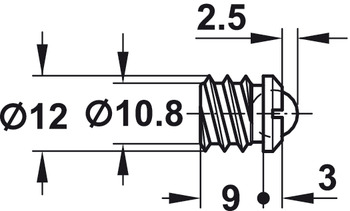

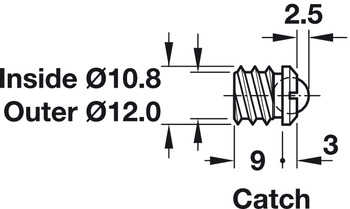

  Product Title: Ball Catch, with Strike, Screw-Mounted, External Diameter:: 12 mm, internal Diameter:: 10.8 mm

  Category: Ball Catch, with Strike, Screw-Mounted,

  Item Details …

  - Brad nails not included, please order separately

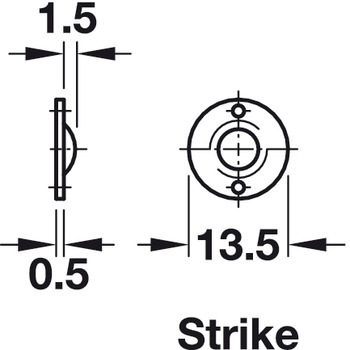

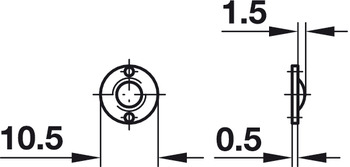

  - Color/finish : Catch: Brightstriking plate: Brass plated

  - Material : Brass

  - Installation : Screw-mounted

  - Order reference

  - Metal pins not supplied, please order separately.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.131



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.100-11.99.pdf

  Hafele 241.86.114, 241-86-114, 24186114, 241.86


  Specifications/Hafele Catalog - Page# FC11.106: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
