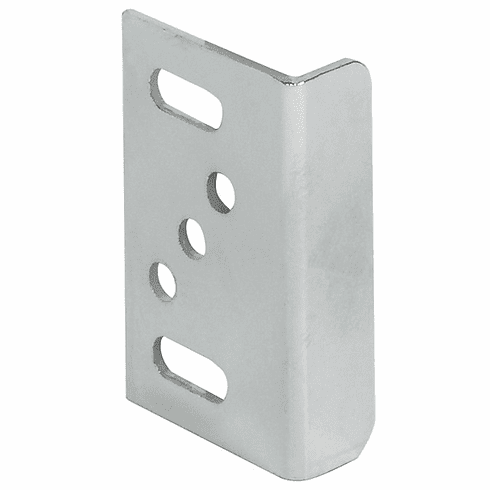

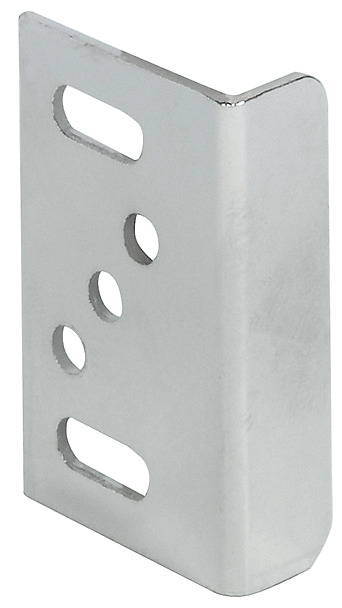

Hafele 239.47.604 Strike Plate, Angled, with Adjustment Slots suitable for LL 100 LockerLock, Nickel-plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 239.47.604

  Product Title: Strike Plate, Angled, with Adjustment Slots, suitable for LL 100 LockerLock, Nickel-plated

  Category: Strike Plate, Angled, with Adjustment Slots, suitable for LL 100 LockerLock, Nickel-plated

  Item Details …

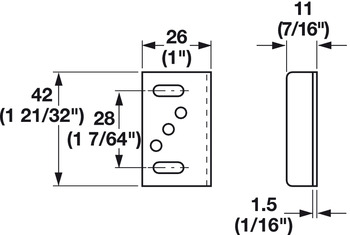

  - Length : 41.00 mm

  - Color/finish : nickel plated

  - Area of application : suitable for LockerLock LL 100 locker lock

  - Shape : angled

  - Screw holes : 2 long, 3 round

  - Material : Steel

  - Width : 25.50 mm

  - Thickness : 1.50 mm

  - Depth : 12.00 mm

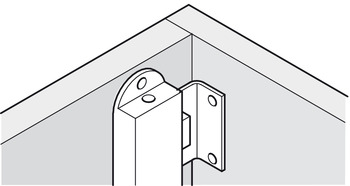

  - Installation : For screw fixing into 32 mm series drilled holes

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.54

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.81



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.52-10.52.pdf

  Hafele 239.47.604, 239-47-604, 23947604, 239.47
