Hafele 237.59.063 Antenne, Hafele Dialock, FAN 30

Product Information

• Description

  Manufacturer: Hafele
  Item: 237.59.063

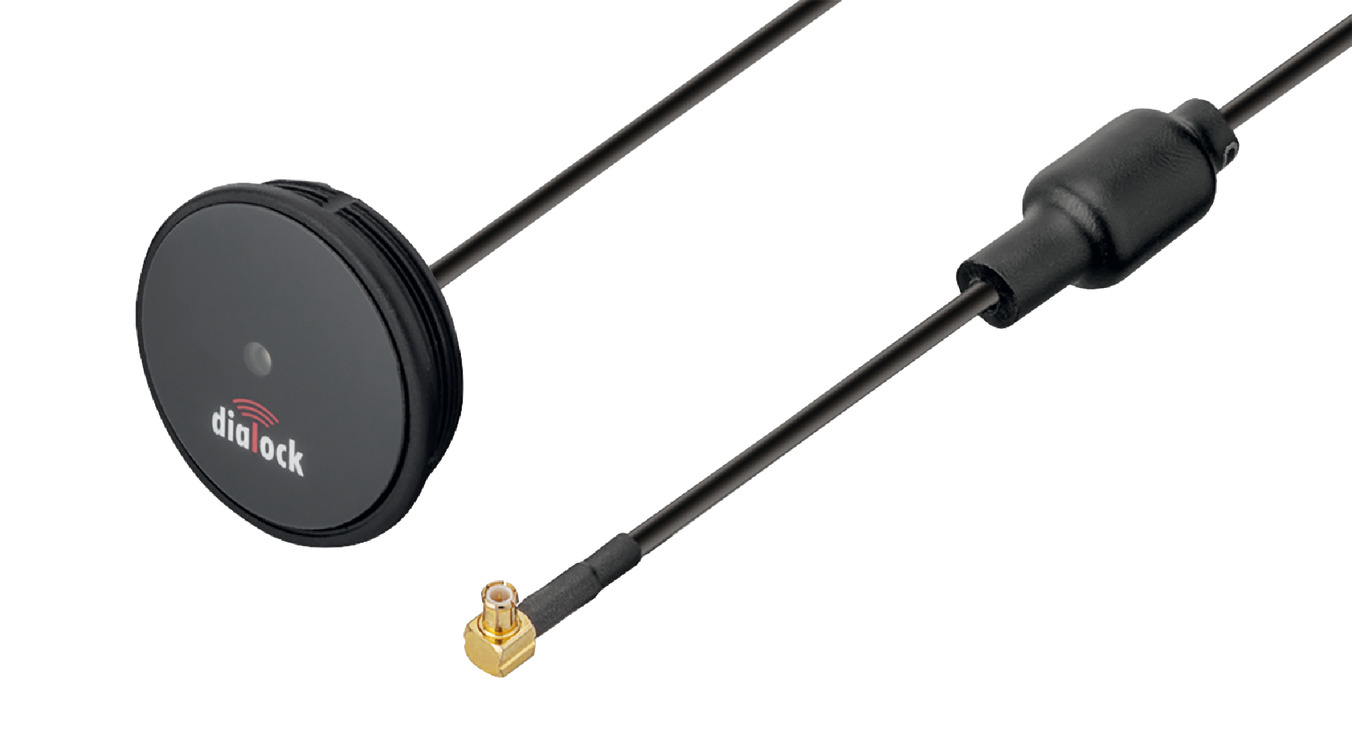

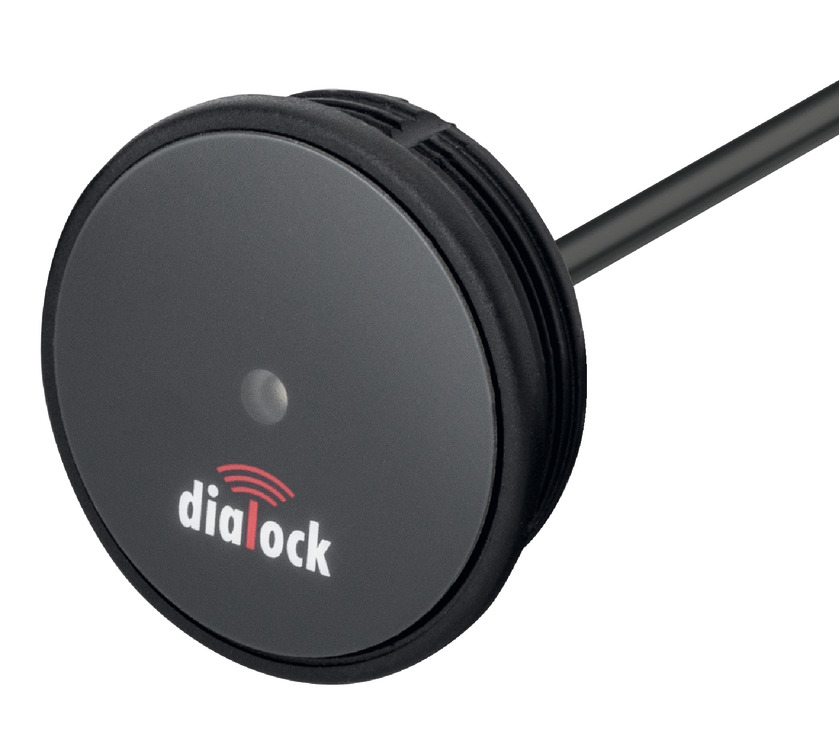

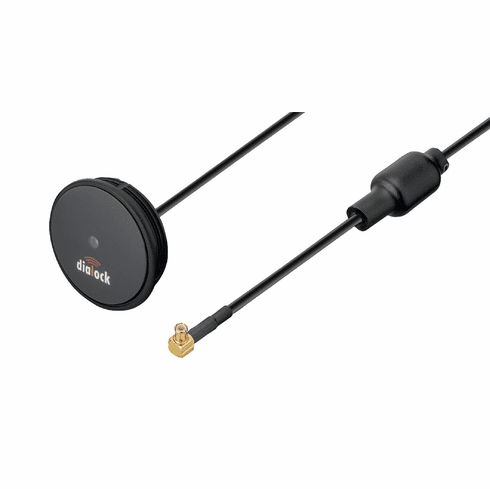

  Product Title: Antenne, Häfele Dialock, FAN 30, Cable length: 1.5 m

  Category: ,

  Item Details …

  - Area of application : For indoor use: For installation in furnitureexternal antenna for EFL 30 / EFL 30C furniture lock

  - Version : with connecting cable and plug for connection to EFL 30 / EFL 30Coffset reader unit for user keys with integrated red/green LED for indicating activation status

  - RFID technology : MIFARE Classic EV1, MIFARE DESFire EV1 / EV2, Tag-itâ„¢ Iso

  - Degree of protection : IP67

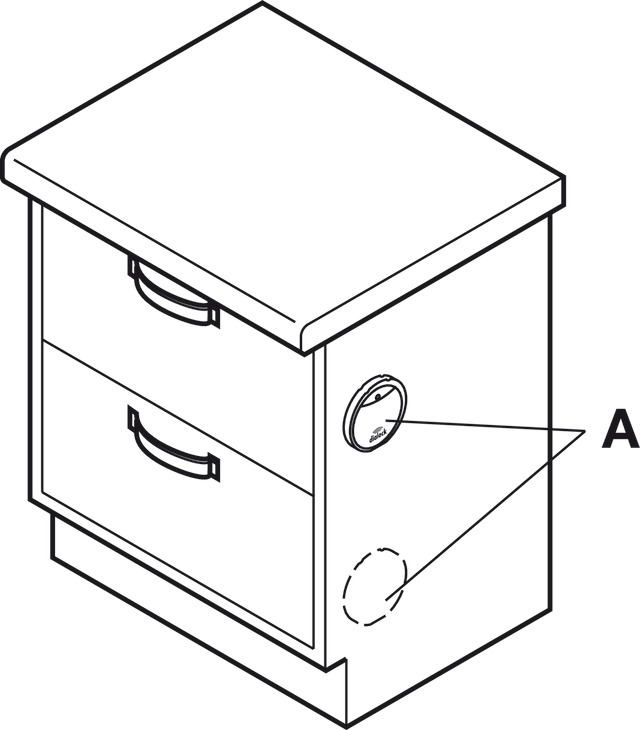

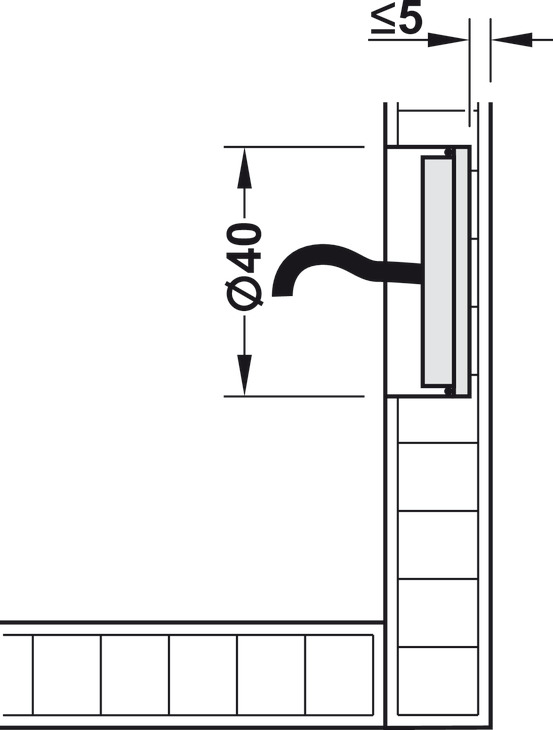

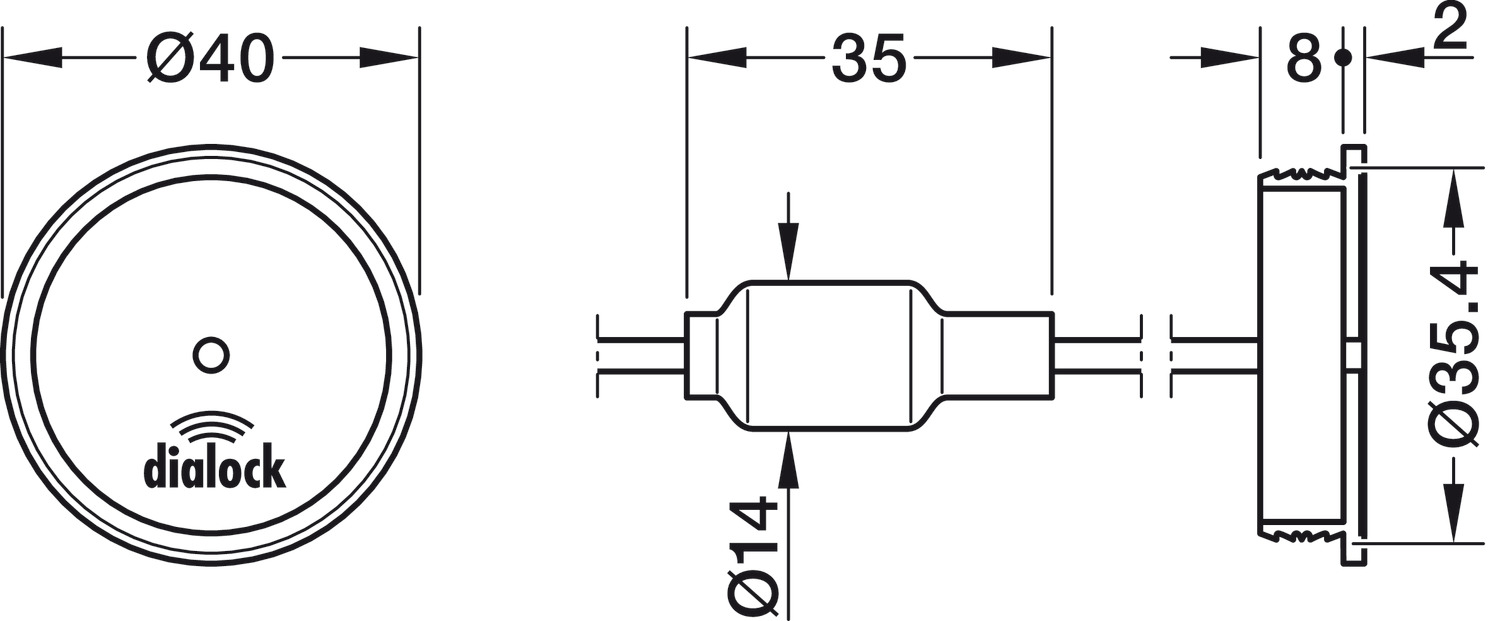

  - Installation : visible installation from the outside when recess mounted in 35 mm cup drill holeconcealed installation from the inside when recess mounted in 40 mm cup drill hole, distance between to of antenna to outside of furniture max. 5 mm


  Additional Information …

  Reading range: max. 25 mm (key FOB). The range may be smaller for environmental reasons if metals or magnetic fields (power supply lines), for example, are nearby.The FAN 30 antenna must not be installed behind or on metal surfaces, mirrors or glass surfaces.The FAN 30 antenna is not suitable for installation in metal or metal coated furniture.Minimum distance between 2 antennas: 250 mm.Connection to EFL 30 / EFL 30C furniture lock.As a result, the integrated antenna on the EFL 30 / EFL 30C is deactivated and operation is only possible via the FAN 30.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions

  EFL 30 / EFL 30c operating instructions

  Declaration of conformity

  Declaration of conformity



• Brand PDF Catalogs
