Hafele 237.59.001 DG2 EFL3C lock w/latch

Product Information

• Description

  Manufacturer: Hafele
  Item: 237.59.001

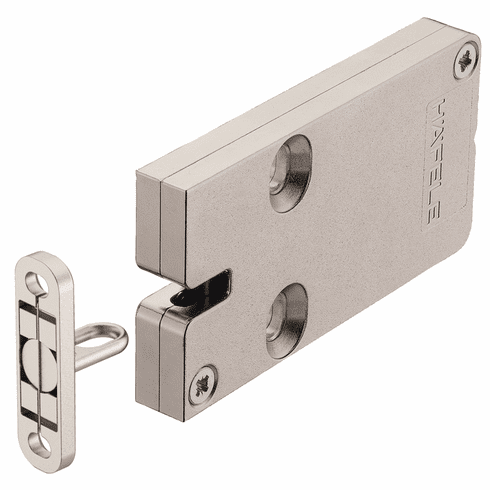

  Product Title: Furniture lock, Häfele Dialock EFL 3C, mains-operated lock, vertical tolerance compensation, With separate feedback contact

  Category: Furniture lock, Häfele Dialock EFL 3/3C, mains-operated lock,

  Item Details …

  - optional, integrated contact for door status indication EFL 3C

  - electric motor locking, cannot be influenced magnetically

  - flat design for variable and integrated installation in furniture

  - EFL 3, can be mounted on both sides

  - Locking component can be mounted on front or at side

  - anti-twist connection plug

  - Product type : Furniture lock

  - Area of application : mains-operated electric lock for indoor use: For hinged doors, flaps, sliding doors, drawers or tambour doors in furniture, office and shopfitting

  - Version : electromotive locking, locking component with magnet, transverse locking plate, flat design 12 mm (installation next to drawer extension possible, distance from cabinet side panel >12 mm)

  - Material : Lock body and locking bolt: Zinc alloy

  - Supplied with:

  - 1 EFL 3 or EFL 3C furniture lock

  - 1 locking component


  Additional Information …

  FunctionalityIn combination with the FT 200 / FT 200 CAP furniture terminal, the furniture lock is opened for 3 s after an authorised user key has been presented (standard latchbolt function). It locks automatically after the open time has elapsed.The door status (locked / unlocked) can be determined with the feedback contact and additional macro. The connected FT 200 furniture terminal then sets an alarm signal.More information about functionality can be found under the FT 200 / FT 200 CAP furniture terminal.



  Use marking gauge for installation.Note max. possible cable lengths, for more information see MLA 6P and MLA 8 multi-lock adapters.The retaining plate of the locking component can be screwed on with a furniture handle (hole spacing 32 mm) at the opposite side.Particularly suitable for furniture constructions with soft closing and self closing mechanisms. Not suitable for drawers and hinged doors with Push-to-Open function.



  No additional fascias/materials (e.g. slotted sheet metal) must be installed between the EFL 3 / EFL 3C and the locking component.Self-adjusting locking component with 2D tolerance compensation +/- 2 mm. Additional adjusting facility on the lock and locking component.
