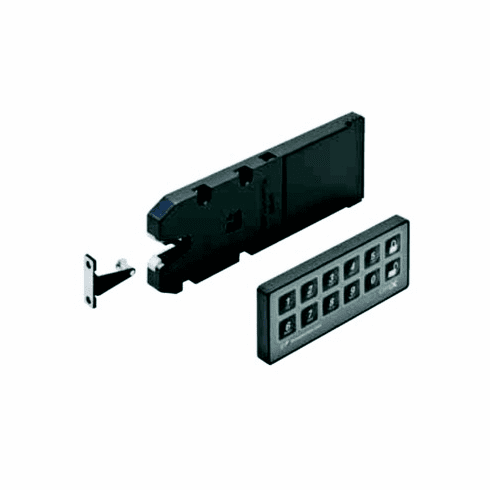

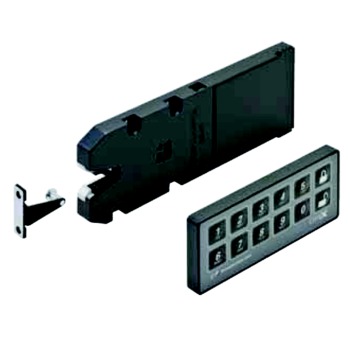

Hafele 237.56.350 StealthLock, Battery Powered RF Cabinet Lock Set

Product Information

• Description

  Manufacturer: Hafele
  Item: 237.56.350

  Product Title: StealthLock, Battery Powered RF Cabinet Lock Set,

  Category: StealthLock, Battery Powered RF Cabinet Lock Set, 237.56.350



  Item Details …

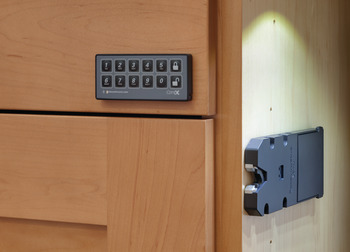

  - StealthLock electrically controls cabinet doors and drawers. It operates in passage or cycle modes, and is released with an RF controlled key pad transmitter.

  - One key pad transmitter can activate an unlimited number of locks within a 4.5 m (15 ft.) range

  - Lock powered by 4–AAA batteries (not included)

  - Low battery indicator on key pad transmitter and lock

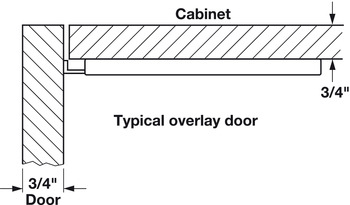

  - Slim design mounts in 1/2" drawer suspension clearance

  - Toggle lock or timed unlock delay

  - Meets ANSI/BIFMA 50 lbf. pull strength specifications

  - Color/finish : Black

  - Model series : StealthLock

  - Data-driven technical data table :

  - Area of application : For interior useFor installation in wood, laminate or plastic cabinets and drawers

  - Material : Reciver Latch and Key Pad: PlasticDoor Strike Plate: Steel

  - Supplied with:

  - Installation tool

  - Mounting screws

  - Instructions

• Data Sheet

  Detailed Data Sheet

• Product Resources

  StealthLock Mounting Instructions

  StealthLock Installation Advice

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.72



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.71-10.72.pdf
