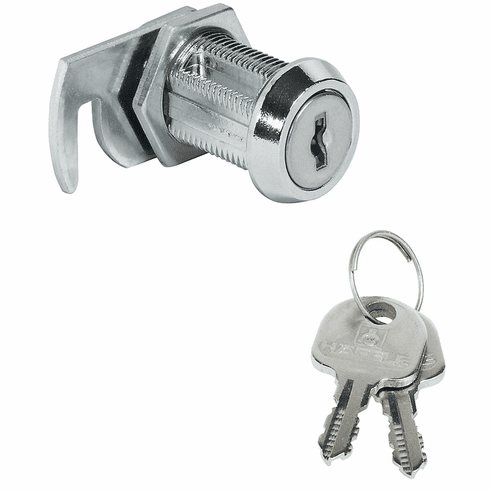

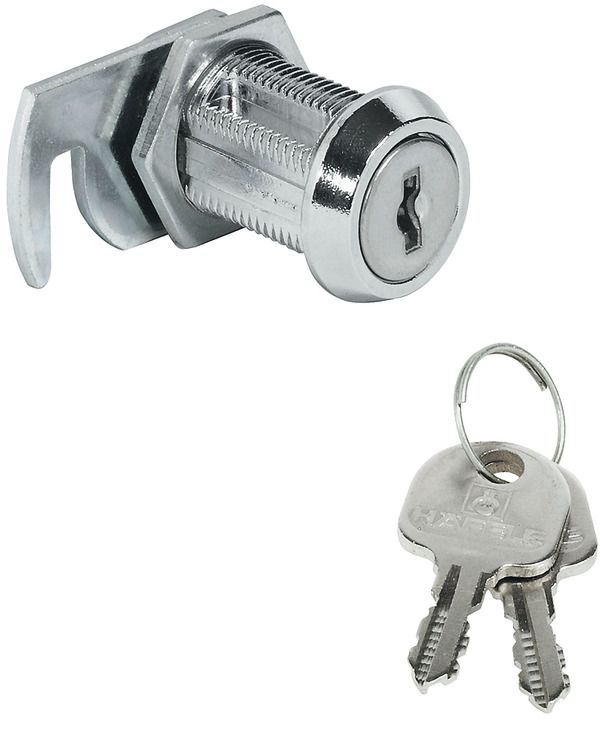

Hafele 235.74.481 PIN code lock, With fixed plate cylinder, with hook cam

Product Information

• Description

  Manufacturer: Hafele
  Item: 235.74.481

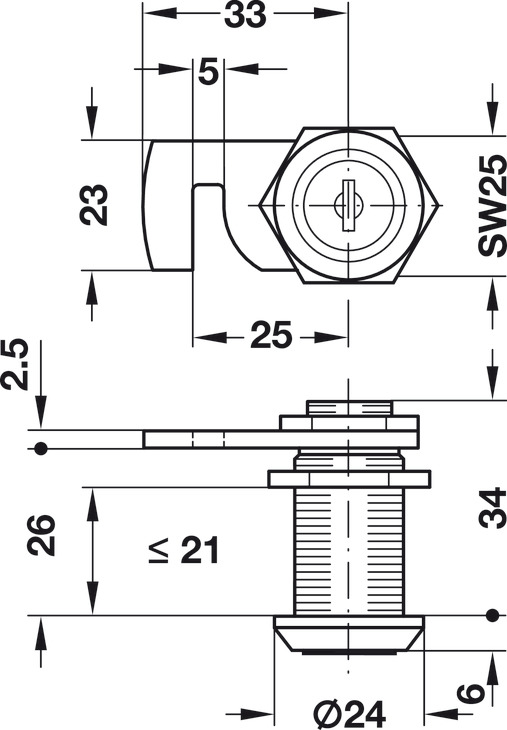

  Product Title: PIN code lock, With fixed plate cylinder, with hook cam, Nut fixing, standard profile, 60-001-keyed alike, closure direction 180°, 1 (2–8), door thickness max. 21 mm

  Category: ,

  Item Details …

  - Version : with fixed plate cylinderWith hook cam

  - Material : Zinc alloy

  - Cylinder shape : round cylinder

  - Type of locking : with 6 plate levers

  - with key : Yes

  - Supplied with:

  - 1 cam lock

  - 2 keys

  - 1 hook locking cam

  - 2 hexagonal nuts

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data
