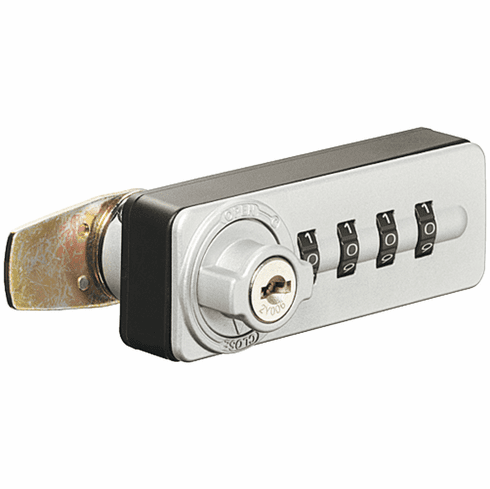

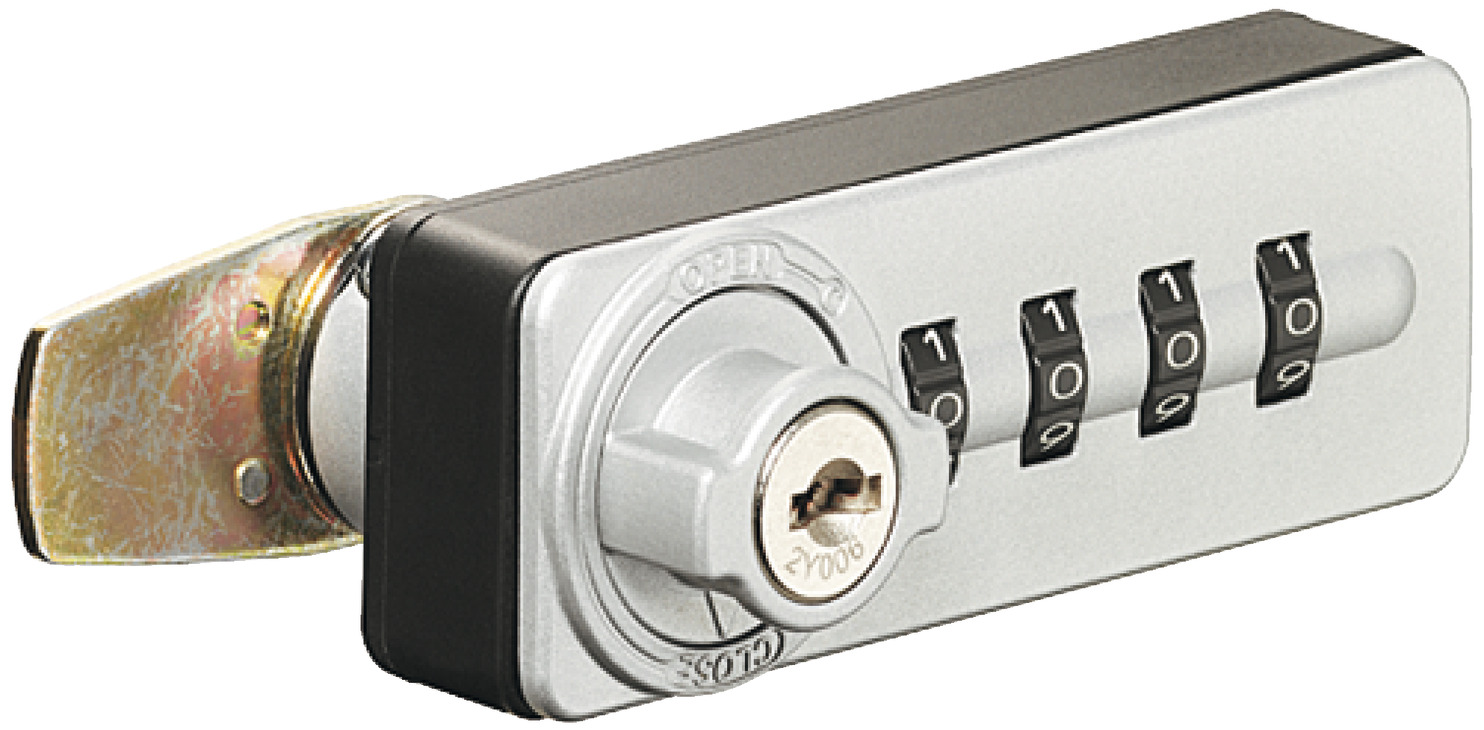

Hafele 235.63.301 PIN code lock, With number wheels, standard profile

Product Information

• Description

  Manufacturer: Hafele
  Item: 235.63.301

  Product Title: PIN code lock, With number wheels, standard profile, key change: Keyed different, mounting: Lock right hand/knob left hand

  Category: ,

  Item Details …

  - Material : Lock case: Zinc alloyrear plate: Plastic

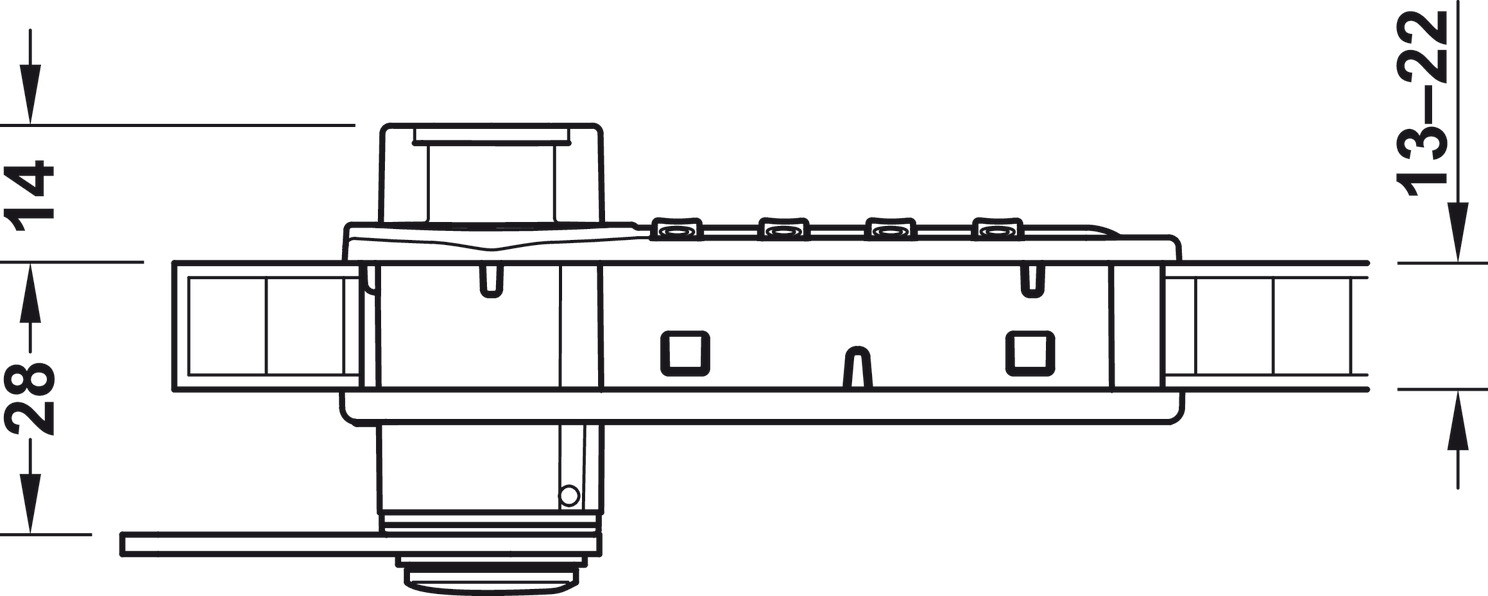

  - For door thickness : 13–21

  - with key : No

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

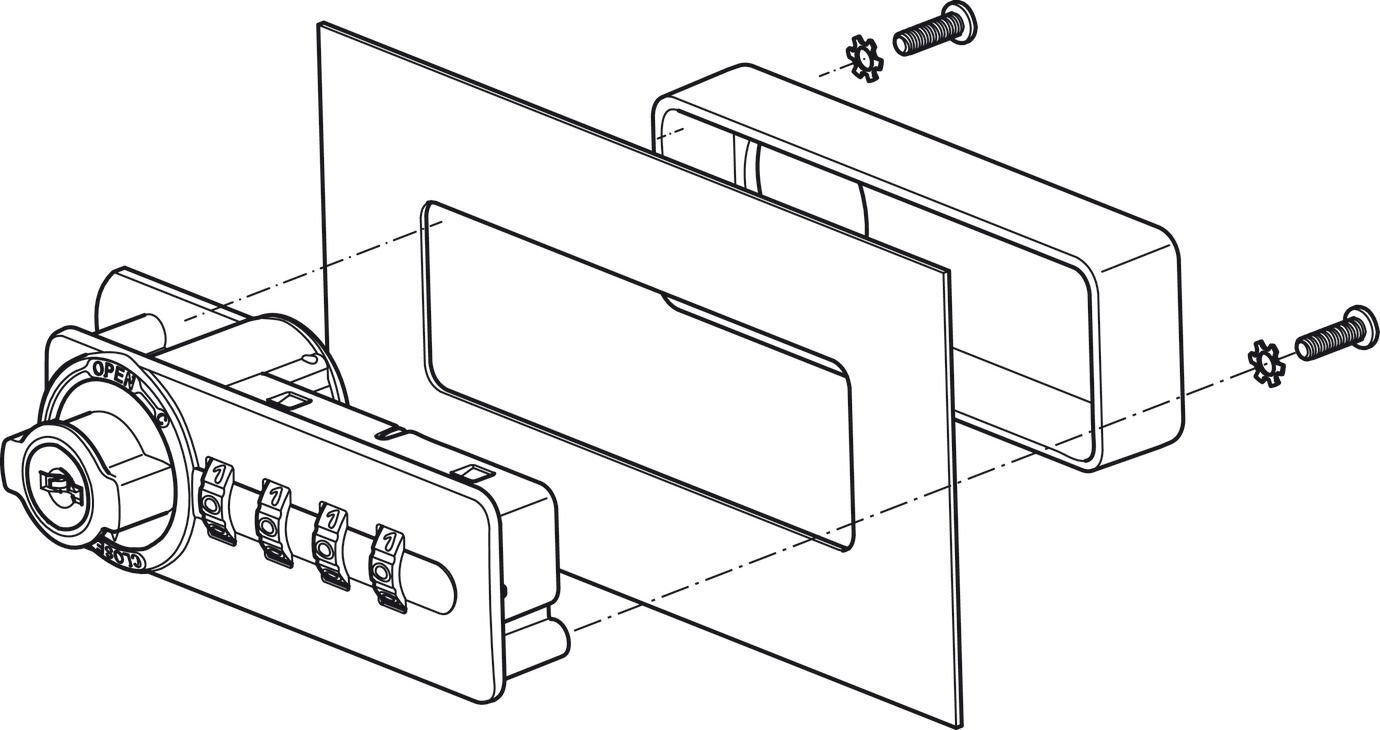

  Fitting instructions for Combination Lock cam lock with number wheels



• Brand PDF Catalogs
