Cam Lock, C8102, flush, 1 1/16", satin brass, keyed different: Hafele part# 235.10.500
![](https://pinterest.com/pin/create/button/?url=https://www.homedecorhardware.com/hf-235-10-500.html&media=https://s.turbifycdn.com/aah/homedecorhardware/hafele-235-10-500-cam-lock-flush-1-1-16-satin-brass-keyed-different-5.png&description=Hafele 235.10.500 Cam Lock, C8102, flush, 1 1/16", satin brass, keyed different (1 piece):Alternate parts# 23510500, 235-10-500 "Pin It")
Product Information
Description

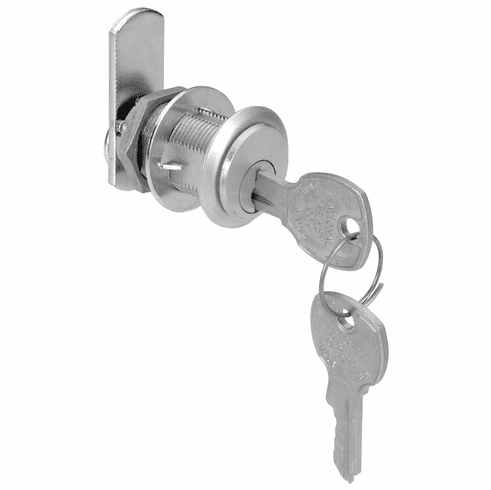

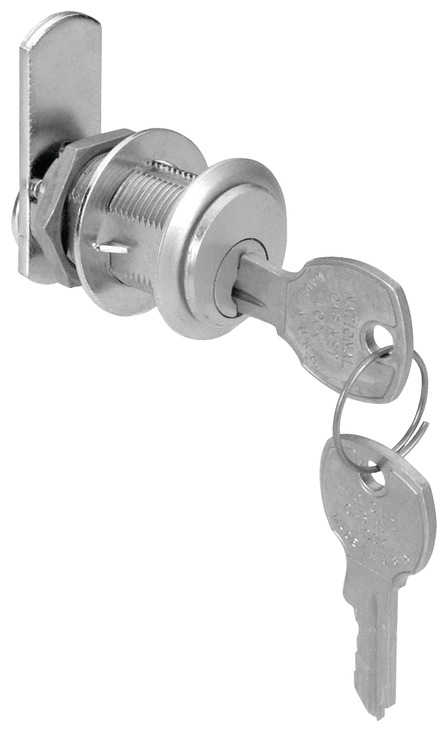

Hafele 235.10.500 Cam Lock, C8102 and C8103 Series, Keyed Different
National Lock - High Security, Satin brass, flush, 1 1/16" (27 mm)Application : For drawer, left or right hand applications Features : 4 pin tumblers = 850 key changes Mounting : Drawer lock Key type : Keyed different Material : Brass Key travel : Cam turns 90°, key turns 360° Supplied with : 2 keys
2 cams
Spur washer
Rosette
Optional items:
Replacement Keys
Mounting PlateSpecifications
