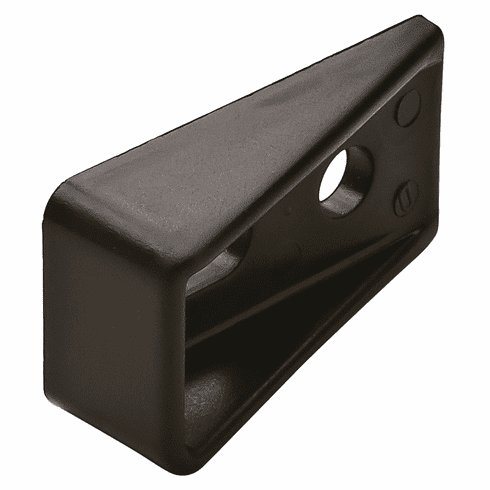

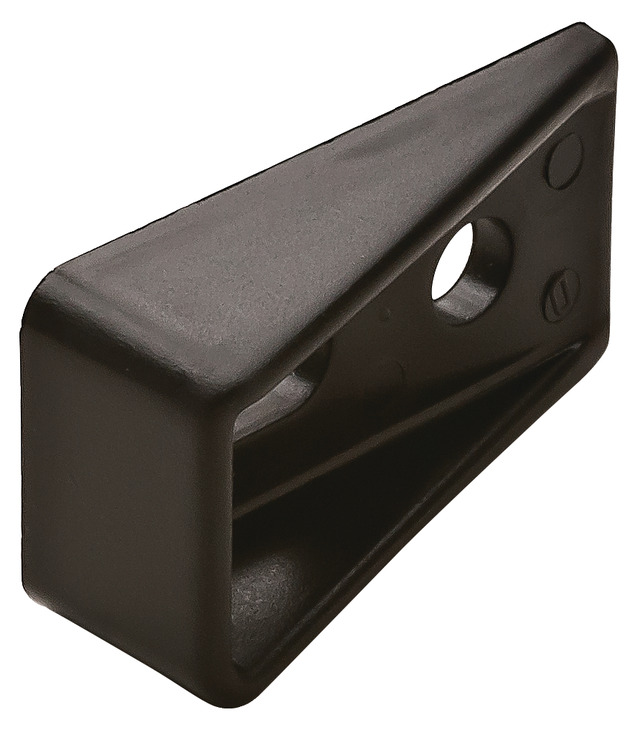

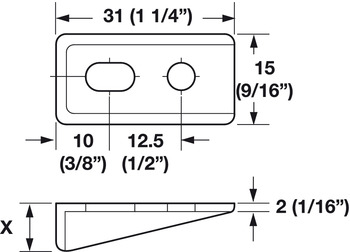

Hafele 234.91.090 Drawer Locking Wedge Timberline - modular removable core locking system, Dim. X: 11 mm (7/16"), application 1/2" thick slides

Product Information

• Description

  Manufacturer: Hafele
  Item: 234.91.090

  Product Title: Drawer Locking Wedge, for Central Locking System, Timberline - modular removable core locking system, Dim. X: 11 mm (7/16"), application 1/2" thick slides

  Category: Drawer Locking Wedge, for Central Locking System, Timberline - modular removable core locking system

  Item Details …

  - Different wedge heights allow for a standard 9.5 mm arresting pin to be used with thicker drawer slides

  - Material : Plastic

  - Color/finish : Black

  - Product type : Drawer Locking Wedge

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.18



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.18-10.19.pdf

  Hafele 234.91.090, 234-91-090, 23491090, 234.91
