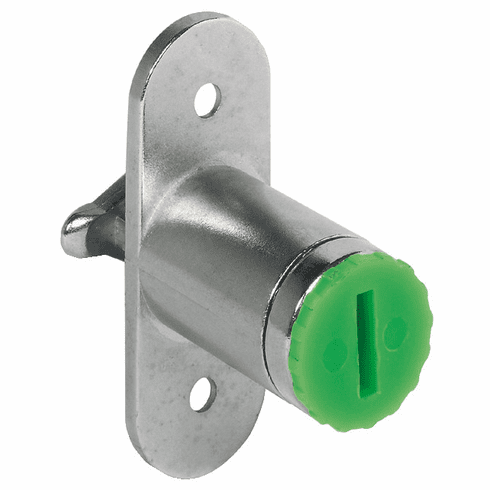

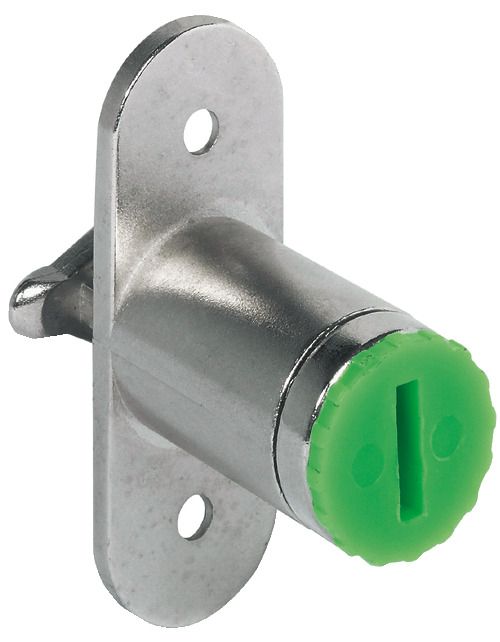

Hafele 234.67.660 Sliding Door Lock, Symo 3000 For combination with Symo cylinder removable core, Closure direction: B (left)

Product Information

• Description

  Manufacturer: Hafele
  Item: 234.67.660

  Product Title: Sliding Door Lock, Symo 3000, For combination with Symo cylinder removable core, Closure direction: B (left)

  Category: Sliding Door Lock, Symo 3000, For combination with Symo cylinder removable core

  Item Details …

  - Closure travel : 180°

  - Area of application : For cylinder cores that are inserted from the front on-site

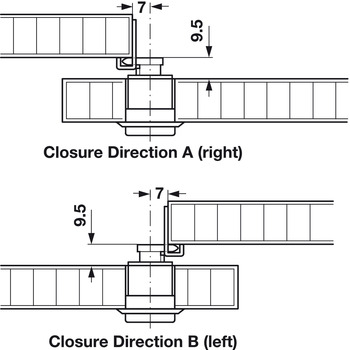

  - Version : Closure direction B (left)

  - Material : Zinc alloy

  - Color/finish : Nickel plated, Nickel plated

  - Cylinder shape : prepared for round cylinder

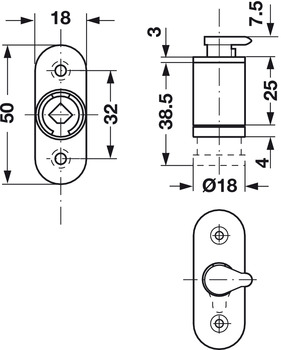

  - Cylinder housing length : 26.00 mm

  - Installation : Screw-mounted

  - with key : No

  - Order reference

  - Only use cylinder cores with restricted rotation and direction (Premium 20) when using pin tumbler cylinder removable core.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.33



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.33-10.33.pdf

  Hafele 234.67.660, 234-67-660, 23467660, 234.67


  Specifications/Hafele Catalog - Page# FC10.34: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Lockers & Locking Systems Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Flat Head Screw, Hospa, countersunk head, PZ, fully threaded
  • Angled Striking Plate, for Push and Turn Lock, Symo 3000
  • Plate-Cylinder Removable Core, Keyed Alike, Symo 3000
  • Master Key, for Plate-Cylinders/Cut Key
  • Key Blank, Steel
  • Removal Blank, For Symo Universal cylinder core, warehouse locking system
  • STW Pin-Tumbler Cylinder Removable Core, Keyed Different
  • STW Pin-Tumbler Cylinder Removable Core, Keyed Alike
