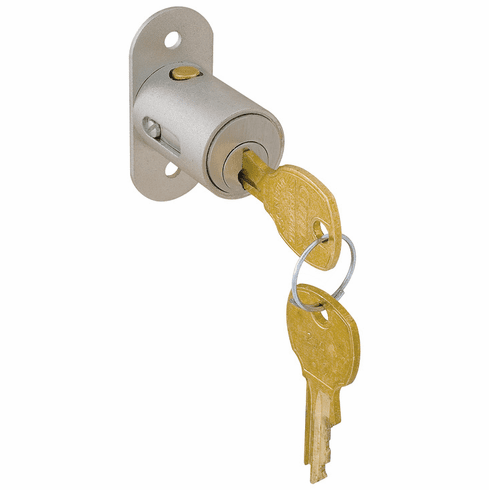

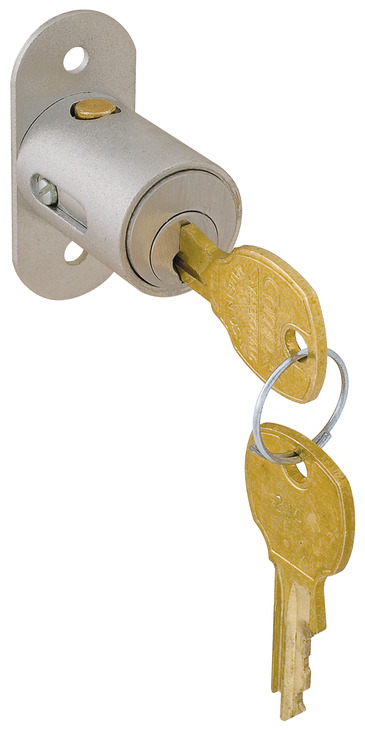

Hafele 234.48.402 Sliding Door Lock, Keyed Alike National Lock - High Security, Key #103

Product Information

• Description

  Manufacturer: Hafele
  Item: 234.48.402

  Product Title: Sliding Door Lock, Keyed Alike, National Lock - High Security, Key #103

  Category: Sliding Door Lock, Keyed Alike, National Lock - High Security

  Item Details …

  - Approved by the Woodworkers Institute (formerly WIC)

  - Custom Master keying and General Master key systems available upon request

  - Please include a key plan

  - Plan on 2–3 weeks to produce

  - Bolt throw : 7/16"

  - Area of application : For application in sliding wood doors

  - Material : Lock and Keys: Brass-plated

  - Color/finish : Brushed chrome

  - Cylinder length : 1 1/8"

  - Installation : Surface mounted, requires a Diameter:15/16" hole

  - Supplied with:

  - 2 keys

  - Locking sleeve

  - Screws

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.41



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.40-10.40.pdf

  Hafele 234.48.402, 234-48-402, 23448402, 234.48


  Specifications/Hafele Catalog - Page# FC10.42: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Lockers & Locking Systems Catalog Return to: All Hafele Catalogs
