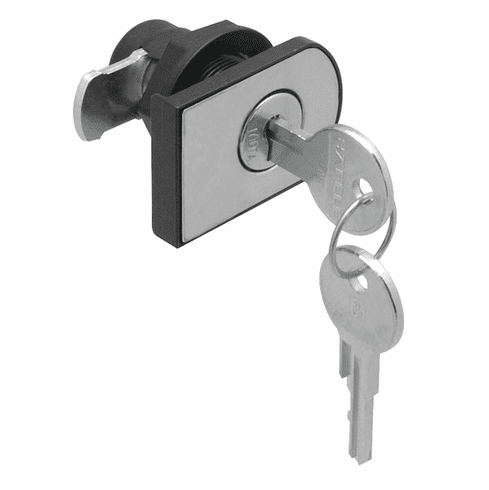

Hafele 233.17.700 Glass Door Lock, Vertical Installation Timberline- modular removable core locking system, Polished nickel

Product Information

• Description

  Manufacturer: Hafele
  Item: 233.17.700

  Product Title: Glass Door Lock, Vertical Installation, Timberline modular removable core locking system, Polished nickel

  Category: Glass Door Lock, Vertical Installation, Timberline modular removable core locking system

  Item Details …

  - Small high quality appearance

  - Fully cushioned to avoid glass damage

  - – Neoprene gasket on front surface

  - – Plastic washer on back surface

  - Finish cap provides improved appearance

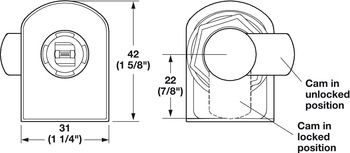

  - Closure travel : 90° (reversible)

  - For max. glass thickness (inches) : 3/8"

  - Suitable for : With straight locking cam

  - Version : With straight locking cam

  - Material : Outer body: NylonFace plate: Brass-platedFinish cap: PlasticLever: Steel

  - Type of locking : with 5 pin tumblers

  - For glass thickness : ≤10 mm

  - For glass thickness (inches) : 3/8"

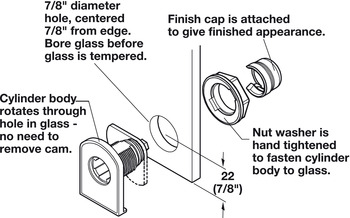

  - Installation : Unique retainer nut allows secure tightening by handTwo piece design for quick mounting - user does not need to assemble cam

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.10



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.10-10.11.pdf

  Hafele 233.17.700, 233-17-700, 23317700, 233.17


  Specifications/Hafele Catalog - Page# FC10.11: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Lockers & Locking Systems Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Snap-In Lock Core, Keyed Different
  • Angle Strike, 90°, Screw-Mounted, 22 x 12 mm
  • Angle Strike, 90°, 22 x 8 mm
  • Snap-In Lock Core, Keyed Alike
