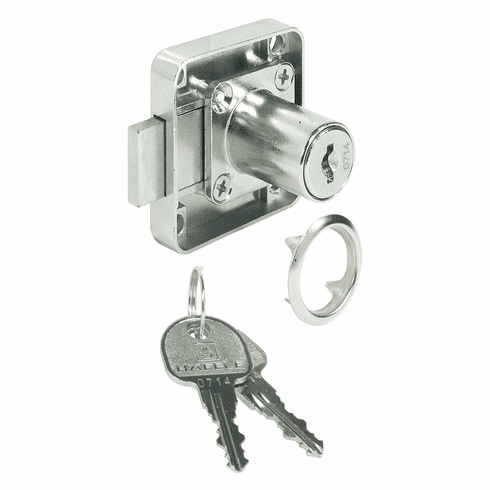

Hafele 232.27.720 Dead Bolt Rim Lock, with Fixed Plate Cylinder Standard Profile, Mounting: Drawer

Product Information

• Description

  Manufacturer: Hafele
  Item: 232.27.720

  Product Title: Dead Bolt Rim Lock, with Fixed Plate Cylinder, Standard Profile, Mounting: Drawer

  Category: Dead Bolt Rim Lock, with Fixed Plate Cylinder, Standard Profile, Mounting: Drawer

  Item Details …

  - Material : Lock case: Zinc alloy

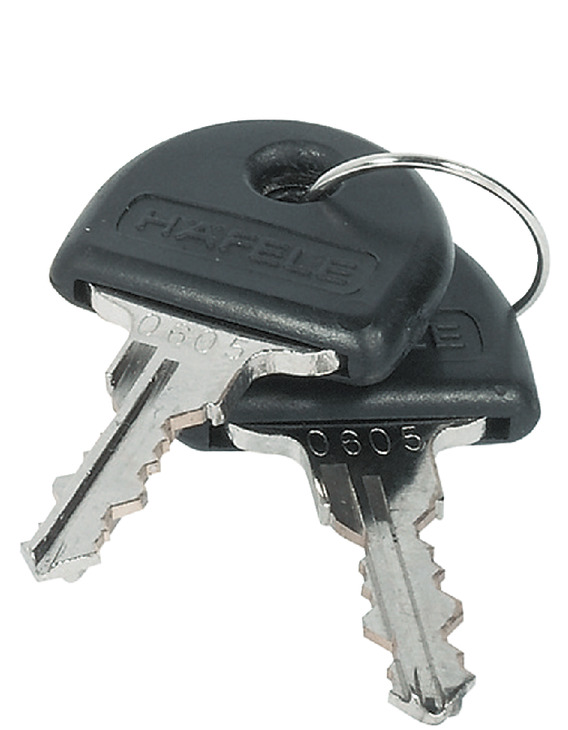

  - Version : Key with black key cap

  - Mounting : Drawer version

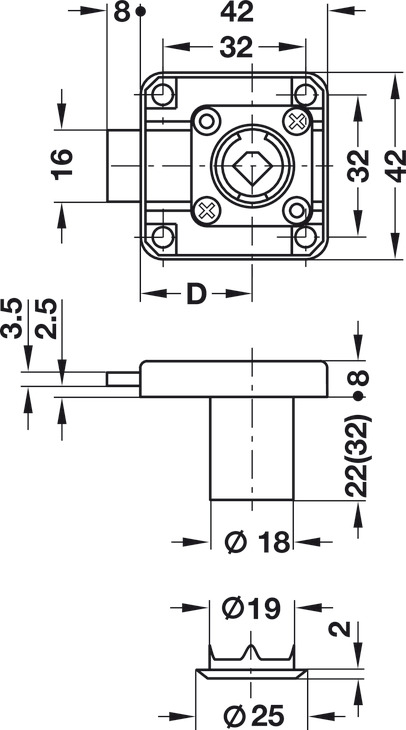

  - Backset (mm) : 25.00 mm

  - Cylinder housing length : 22.00 mm

  - Locking system : Standard profile

  - Closure type : Keyed to differ

  - Key change : Keyed different

  - Color/finish : Housing: matt nickel plated, Brass-plated

  - Backset D : 25.00 mm

  - Area of application : Particularly suitable for mass production of furniture

  - Cylinder shape : round cylinder

  - Cylinder Diameter: (mm) : 18.00 mm

  - Deadbolt throw dim. : 8.00 mm

  - Type of locking : with 6 plate levers

  - Installation : Drawer version

  - with key : Yes

  - Finish : Brass-plated

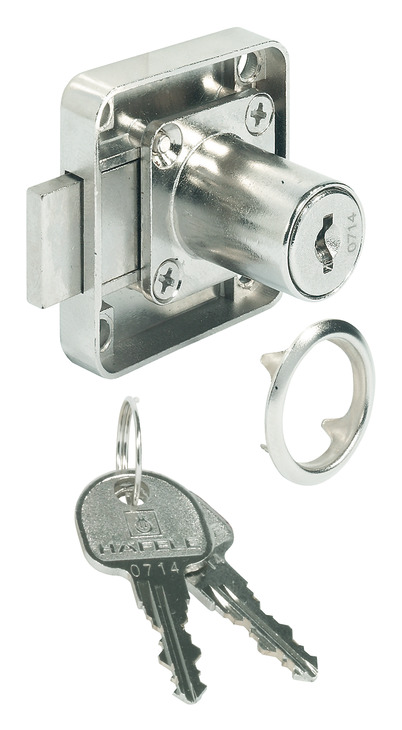

  - Supplied with:

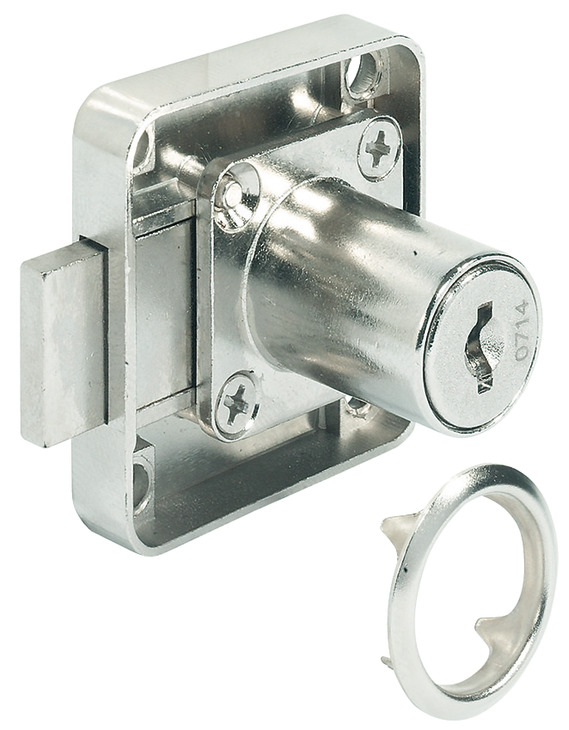

  - 1 deadbolt rim lock

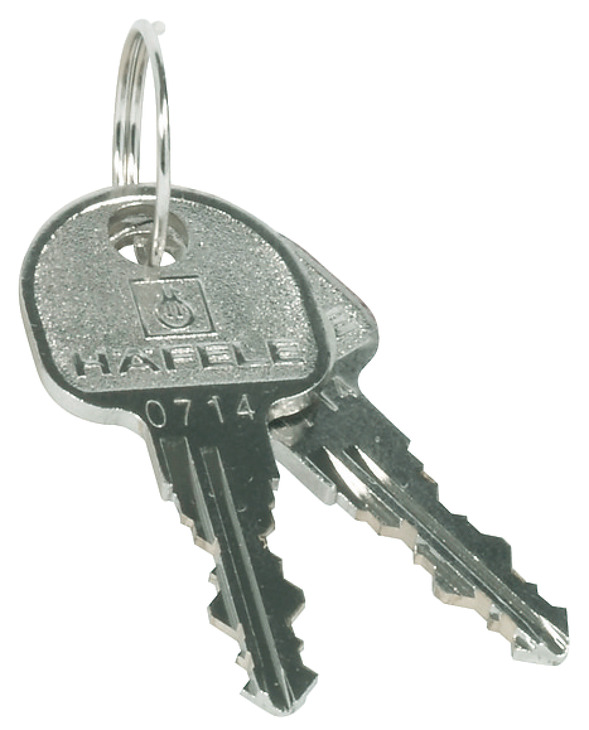

  - 2 key

  - 1 cylinder rosette
