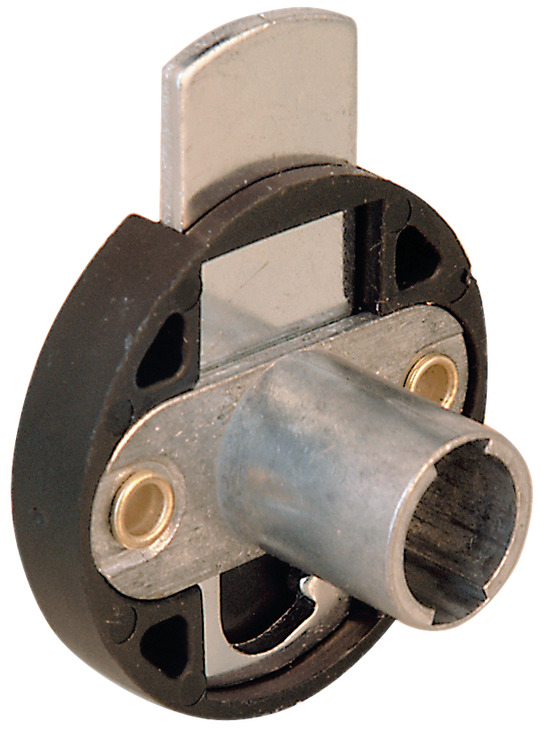

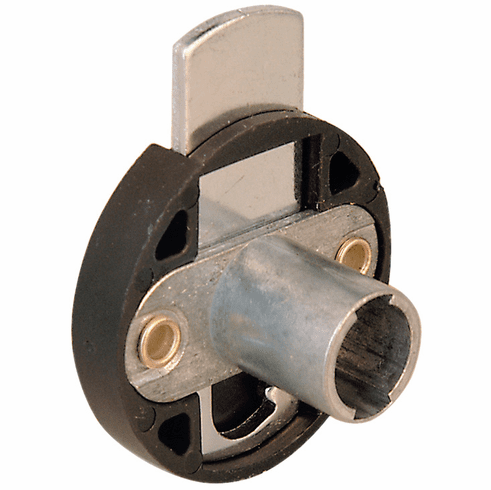

Hafele 232.18.316 Deadbolt Lock, Extended Bolt, 49 mm Throw Timberline- modular removable core locking system, Drawer, CB-231

Product Information

• Description

  Manufacturer: Hafele
  Item: 232.18.316

  Product Title: Deadbolt Lock, Extended Bolt, 49 mm Throw, Timberline modular removable core locking system, Drawer, CB-231

  Category: Deadbolt Lock, Extended Bolt, 49 mm Throw, Timberline modular removable core locking system

  Item Details …

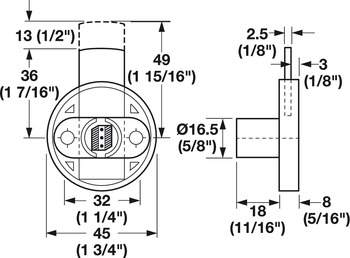

  - Bolt starts at 36 mm (1 7/16") and extends to 49 mm (1 15/16")

  - Material : Lock case: NylonCylinder housing: Die-cast zincBolt: Steel

  - Color/finish : Lock case: Black, Cylinder housing: UnfinishedBolt: Nickel

  - Installation : Rotate cylinder core 180º to install

  - Bolt throw : 1/2"

  - Finish : Cylinder housing: UnfinishedBolt: Nickel

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.7



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.6-10.7.pdf

  Hafele 232.18.316, 232-18-316, 23218316, 232.18
