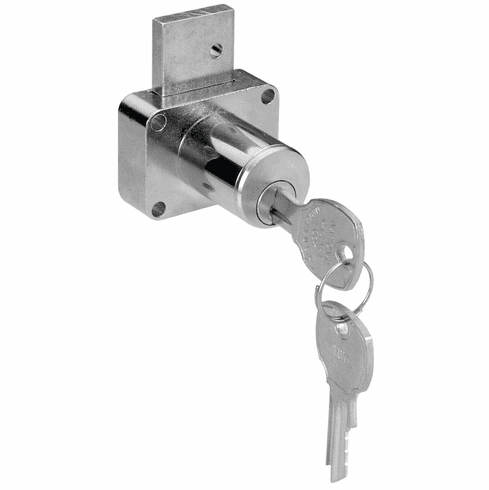

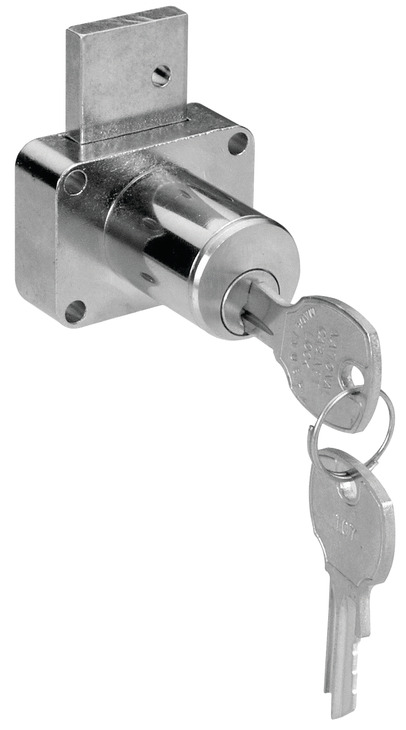

Hafele 232.14.650 Cabinet Drawer Lock, C8178 and C8179 Series, Keyed Different National Lock - High Security, Satin brass, cylinder length 1 3/8"

Product Information

• Description

  Manufacturer: Hafele
  Item: 232.14.650

  Product Title: Cabinet Drawer Lock, C8178 and C8179 Series, Keyed Different, National Lock - High Security, Satin brass, cylinder length 1 3/8"

  Category: Cabinet Drawer Lock, C8178 and C8179 Series, Keyed Different, National Lock - High Security

  Item Details …

  - The PLUS feature allows you to remove the cylinder from our pin tumbler box locks while the lock remains in place. No mounting screws need to be removed. Simply use a 5/64" hex wrench from the back to remove the cylinder for re-keying.

  - Certified ASNI/BHMA Grade 2

  - Woodwork Institute acknowledged product

  - Custom Master keying and General Master key systems available upon request

  - 2000 master key codes available, special order 5 pin tumblers

  - Please include a key plan

  - Plan on 2–3 weeks to produce

  - Material : Lock and Keys: Brass-platedStrike: Brass-plated

  - Mounting : Drawer lock

  - Key change : 850 different key changes possible

  - Installation : Surface mounted, requires a ø57/64" hole

  - Bolt throw : 3/4"

  - Finish : Satin brass

  - Supplied with:

  - 2 keys

  - Strike plate

  - Screws

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.38



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.36-10.37.pdf

  Hafele 232.14.650, 232-14-650, 23214650, 232.14


  Specifications/Hafele Catalog - Page# FC10.39: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Lockers & Locking Systems Catalog Return to: All Hafele Catalogs
