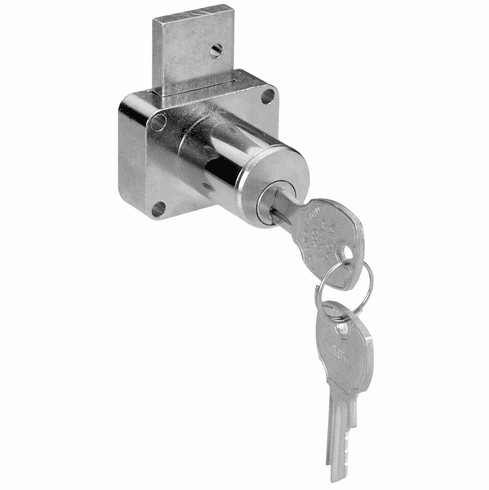

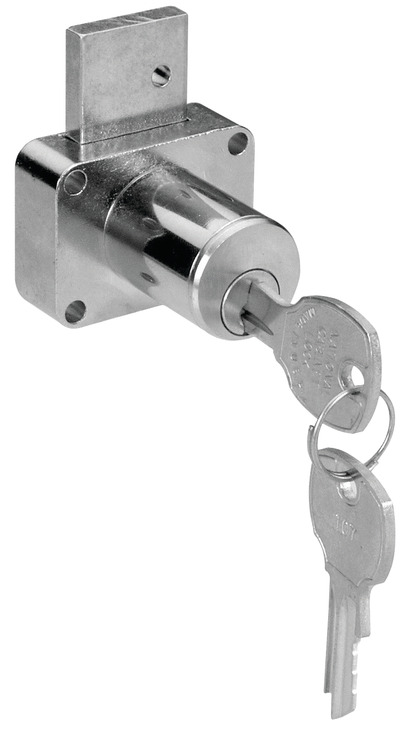

Hafele 232.14.350 Cabinet Drawer Lock, C8178 and C8179 Series, Keyed Different National Lock - High Security, Brushed chrome, cylinder length 1 3/8"

Product Information

• Description

  Hafele 232.14.350 Cabinet Drawer Lock, C8178 and C8179 Series, Keyed Different
  National Lock - High Security, Brushed chrome, cylinder length 1 3/8"



  Key change : 850 different key changes possible

  Key type : Keyed different

  Features : 4 pin tumblers = 850 key changes
  Key turn 360°

  Installation : Surface mounted, requires a ΓΈ57/64" hole

  Mounting : Drawer lock

  Key travel : 360°

  Bolt throw : (3/4") 19.05 mm

  Material : Lock and Keys: Brass-plated
  Strike: Brass-plated

  Finish : Brushed chrome

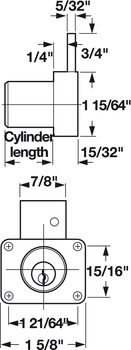

  Cylinder length : (1 3/8") 35



  Supplied with :

  2 keys

  Strike plate

  Screws



  Optional items:
  Cylinder Rosettes


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.36-10.37.pdf

  Hafele 232.14.350, 232-14-350, 23214350, 232.14
