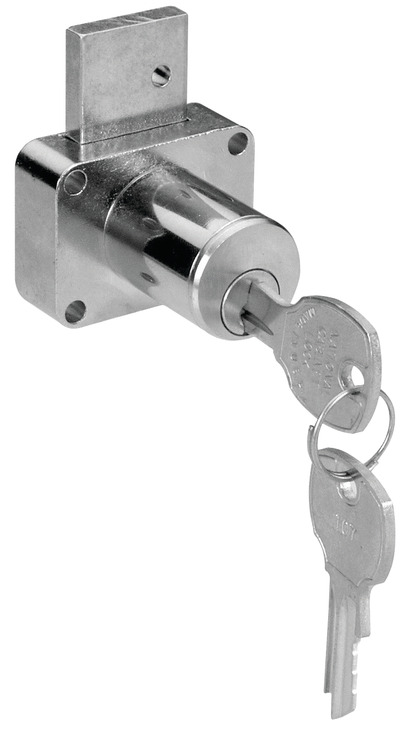

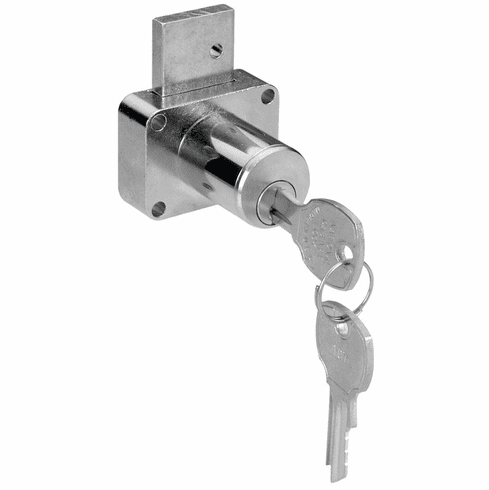

Hafele 232.14.303 Cabinet Drawer Lock, Keyed Alike, 7/8" Cylinder National Lock - High Security, Brushed chrome, key #107

Product Information

• Description

  Manufacturer: Hafele
  Item: 232.14.303

  Product Title: Cabinet Drawer Lock, Keyed Alike, 7/8" Cylinder, National Lock - High Security, Brushed chrome, key #107

  Category: Cabinet Drawer Lock, Keyed Alike, 7/8" Cylinder, National Lock - High Security

  Item Details …

  - The PLUS feature allows you to remove the cylinder from our pin tumbler box locks while the lock remains in place. No mounting screws need to be removed. Simply use a 5/64" hex wrench from the back to remove the cylinder for re-keying.

  - Certified ASNI/BHMA Grade 2

  - Woodwork Institute acknowledged product

  - Custom Master keying and General Master key systems available upon request

  - 2000 master key codes available, special order 5 pin tumblers

  - Please include a key plan

  - Plan on 2–3 weeks to produce

  - Material : Lock and Keys: Brass-platedStrike: Brass-plated

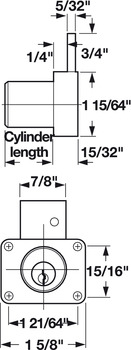

  - Installation : Surface mounted, requires a Diameter:57/64" hole

  - Bolt throw : 3/4"

  - Finish : Brushed chrome

  - Supplied with:

  - 2 keys

  - Strike plate

  - Screws

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.38



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.36-10.37.pdf

  Hafele 232.14.303, 232-14-303, 23214303, 232.14


  Specifications/Hafele Catalog - Page# FC10.39: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Lockers & Locking Systems Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Cylinder Rosettes, Diameter:25 mm (1")
  • Master Key, for MKKD Cam Locks
