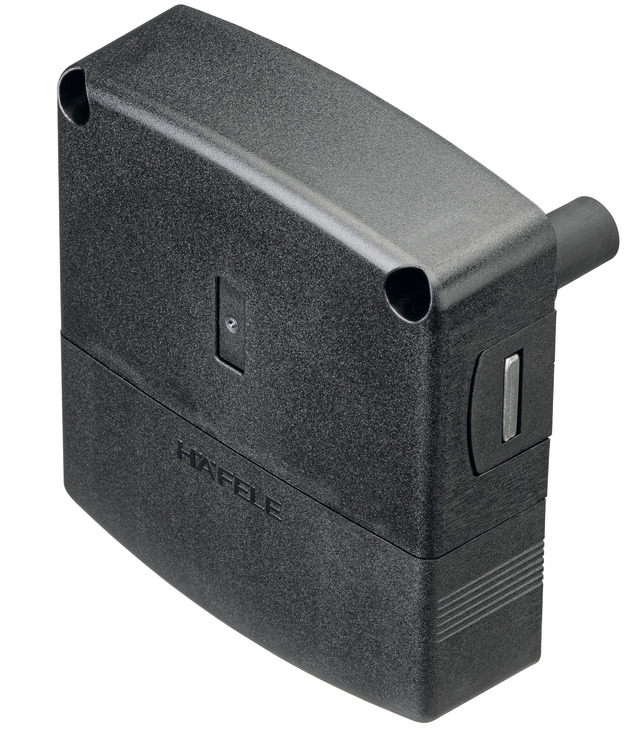

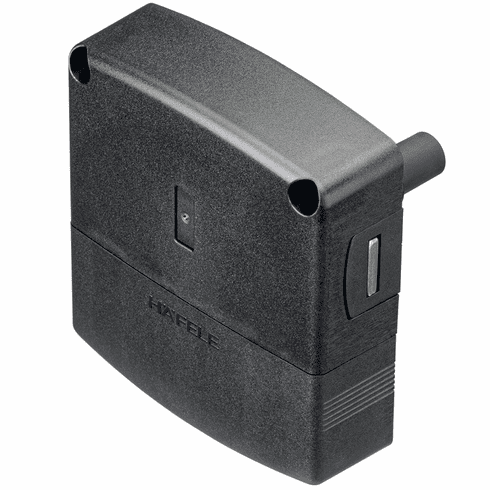

Hafele 231.91.300 Locker Lock, Hafele Dialock LockerLock 300 batteriebetriebener Verschluss, für Tag-itTM ISO, Mifare Classic und Mifare DESfire

Product Information

• Description

  Manufacturer: Hafele
  Item: 231.91.300

  Product Title: Locker lock, Häfele Dialock LockerLock 300 battery-operated lock, for Tag-itTM ISO, Mifare Classic and Mifare DESfire, Housing plastic, anthracite coloured

  Category: ,

  Item Details …

  - Data transfer with MDU via RFID interface or HDM app

  - Area of application : battery-operated, intelligent locker lock for indoor use: For wardrobes, lockers, compartment cabinets and lockers with doors made from wood or HPL or metal

  - Version : Factory settings for right doors, can be adapted to left doorsBatteries theft-proof, magnetic interactions cannot take placeintegrated real-time clock for audit trail of all processesAcoustic feedback when opening and closingProgramming/data transfer with MDU via RFID interface or HDM app

  - Transponder technology : Tag-itâ„¢-ISO , MIFARE DESFire EV2, MIFARE Classic EV1

  - Functionality : "fixed allocation" and "free choice of locker" function,Battery monitoring: If the need for battery change is indicated, the locker can still be unlocked, but not locked again,Emergency opening possible with master key

  - Type of battery : 4 x AA 1,5 V Typ E91

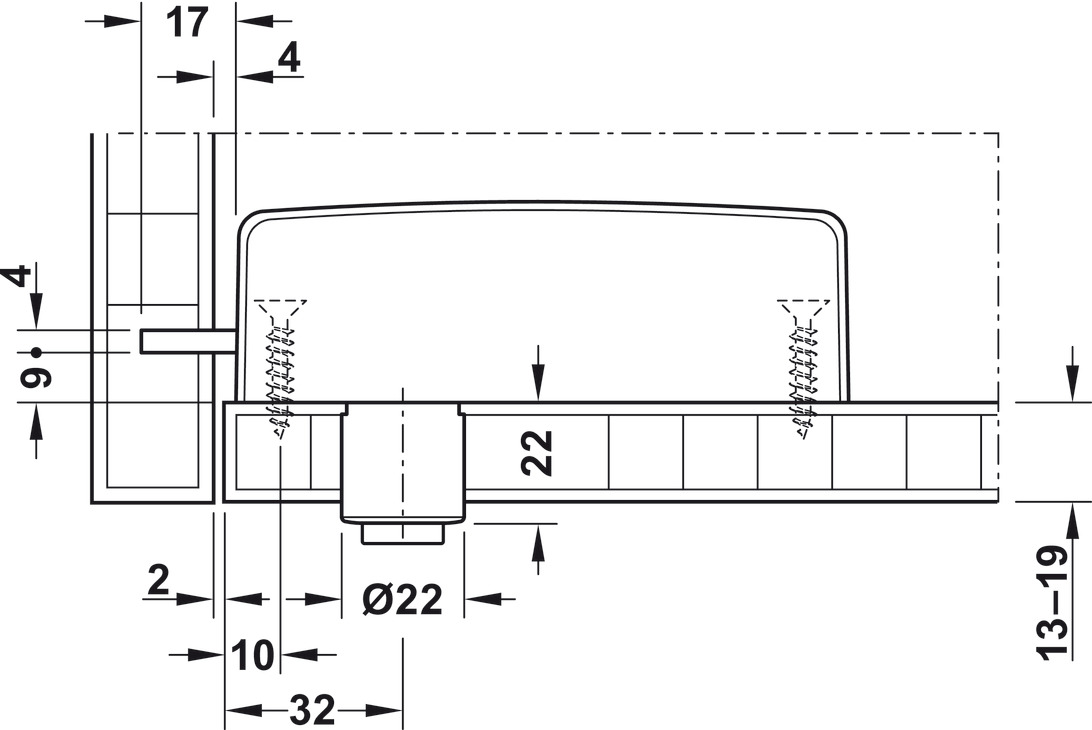

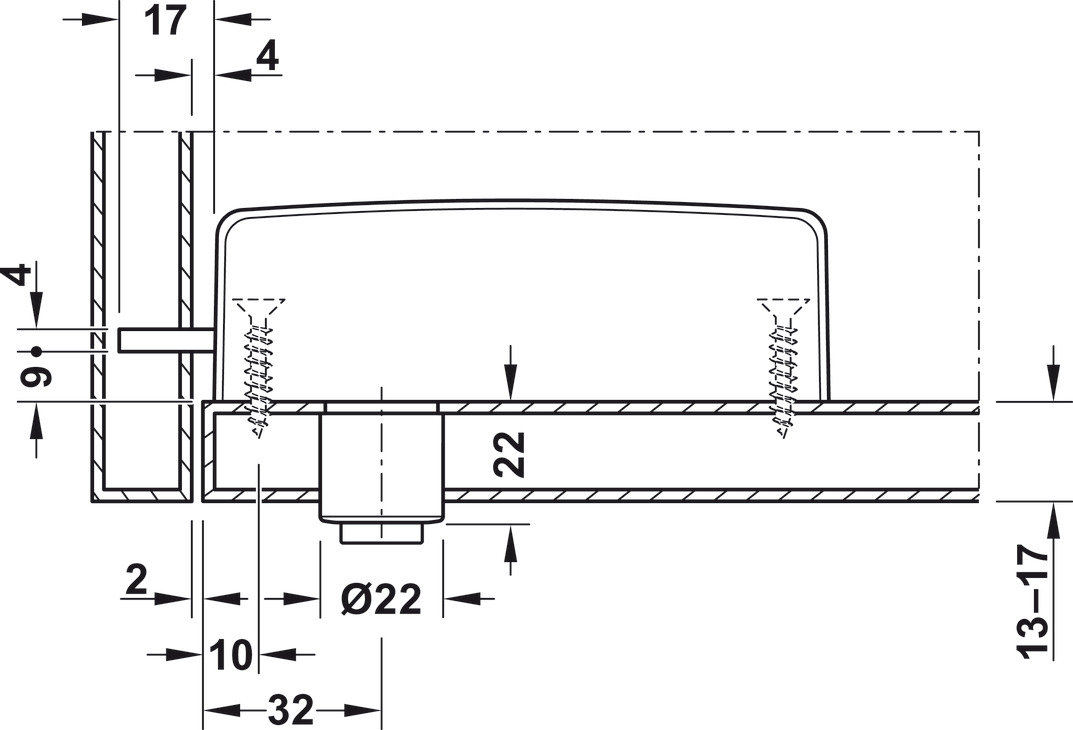

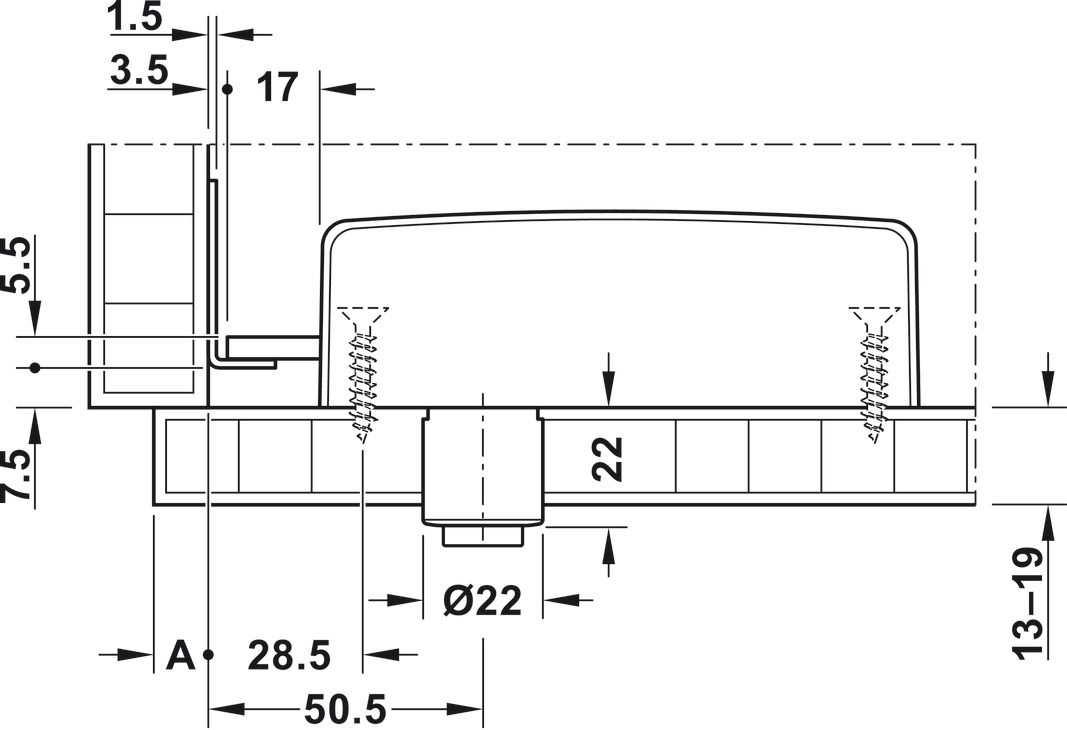

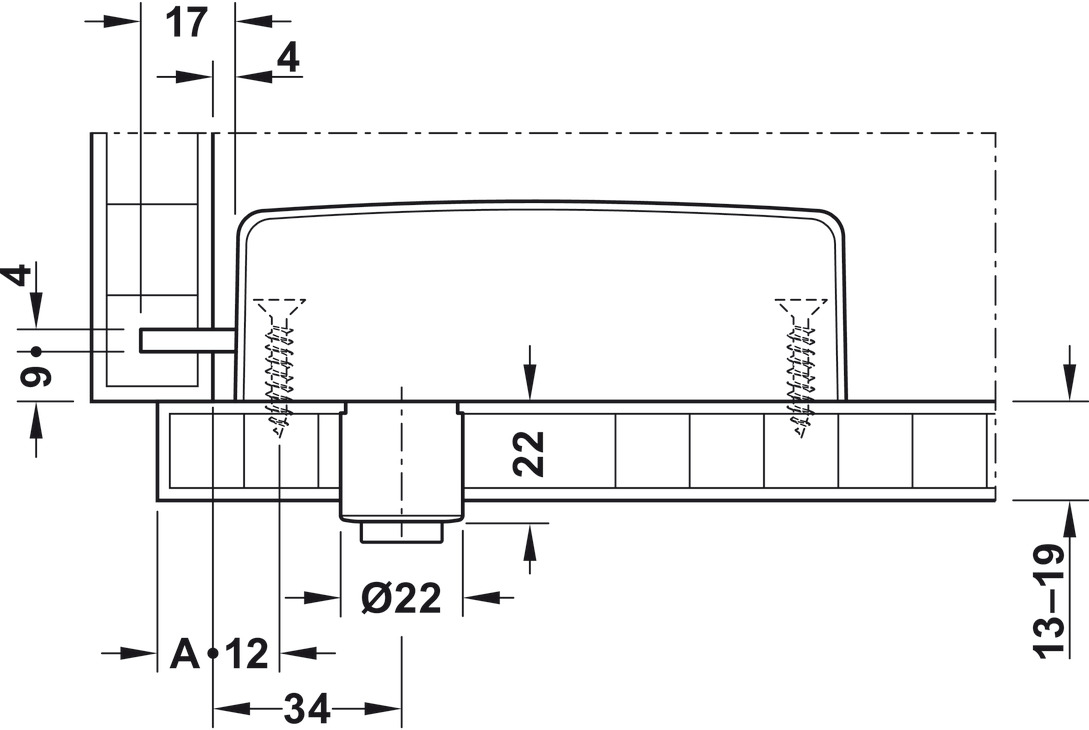

  - For door thickness : 13 – 19 mm


  Additional Information …

  LL 300 LockerLock for use with PK programming key card, PK clearing key card, KT key tag or KB key wristband. Can be used in stand-alone mode with programming and PK clearing key card, with software/MDU 110 or My Dialock Manager appcan be programmed."free choice of locker" function:The free choice of locker can be configured with the My Dialock Manager app or in use with Dialock software applications. For more information on the "Free choice of locker" function, please contact our Dialock service at www.hafele.de."fixed locker allocation" function:One or several (optional) Dialock keys are allocated to one or several (optional) lockers for locking and unlocking.Battery change:When battery change is required, we recommend replacing all four batteries. The maintenance tool is needed to open the battery compartment. The type-specific discharge behaviour (steep drop in voltage at the end of the life time) of lithium batteries can lead to the battery due date only being displayed on the terminal for a short period or not at all.Emergency opening with master key:The PK programming key card and PK clearing key card can be used for emergency opening.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Installation instructions for LL 300

  Operating instructions for LL 300
