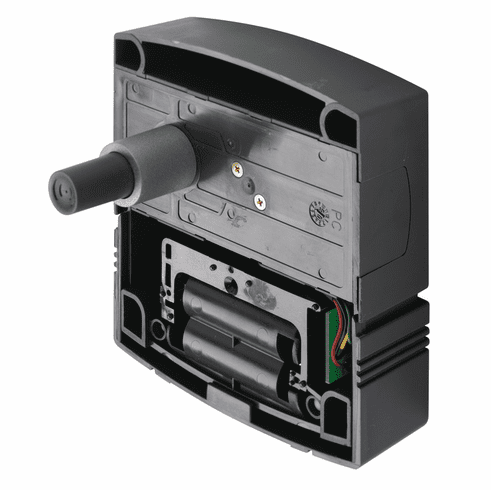

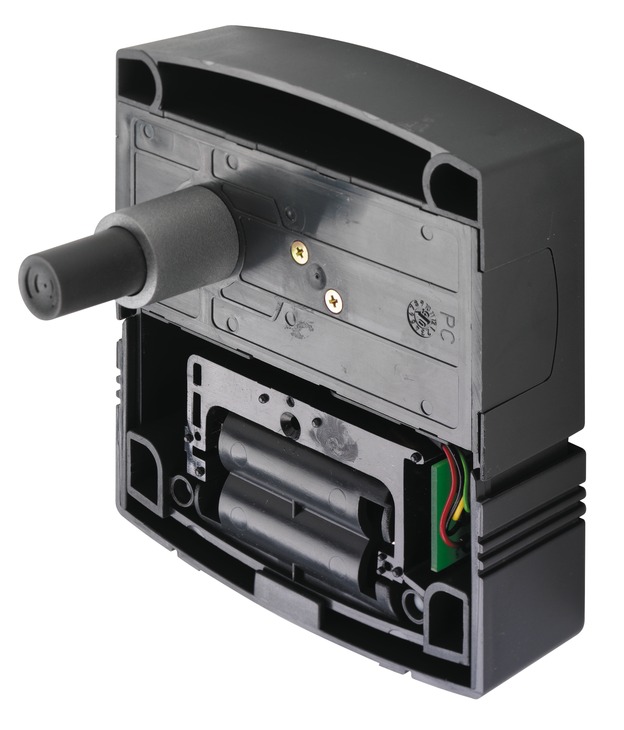

Hafele 231.90.013 LockerLock Tag-it , Battery Powered Electronic Locking System Dialock, With Tag-it processor

Product Information

• Description

  Manufacturer: Hafele
  Item: 231.90.013

  Product Title: LockerLock Tag-it™, Battery Powered Electronic Locking System, Dialock®, With Tag-it™ processor

  Category: LockerLock Tag-it™, Battery Powered Electronic Locking System, Dialock®, With Tag-it™ processor

  Item Details …

  -

  - Technical Data

  -

  - Mounts on left hand or right hand door

  - Memorizes up to 228 user keys

  - Memorizes last 150 key uses (Complete Programming feature only)

  - Requires (4) 1.5 V/DC AA Premium Batteries (sold separately)

  - Replacement after 10,000 cycles

  - Under low power, locking is not possible

  - Batteries accessible only with special tool

  - Includes locker label without number

  - Product type : LockerLock Tag-it™

  - Area of application : For indoor use: For wardrobes, lockers and compartmentt cabinets with doors made of wood or HPL

  - Material : Plastic


  Additional Information …

  Please contact our Sales staff for details of the Complete Dialock solution including MDU and Dialock softwareMost Dialock products for furniture applications are based on Tag-it™ transponder technology. Various products are also available with Legic transponders - information available on request

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.79-10.80.pdf

  Hafele 231.90.013, 231-90-013, 23190013, 231.90
