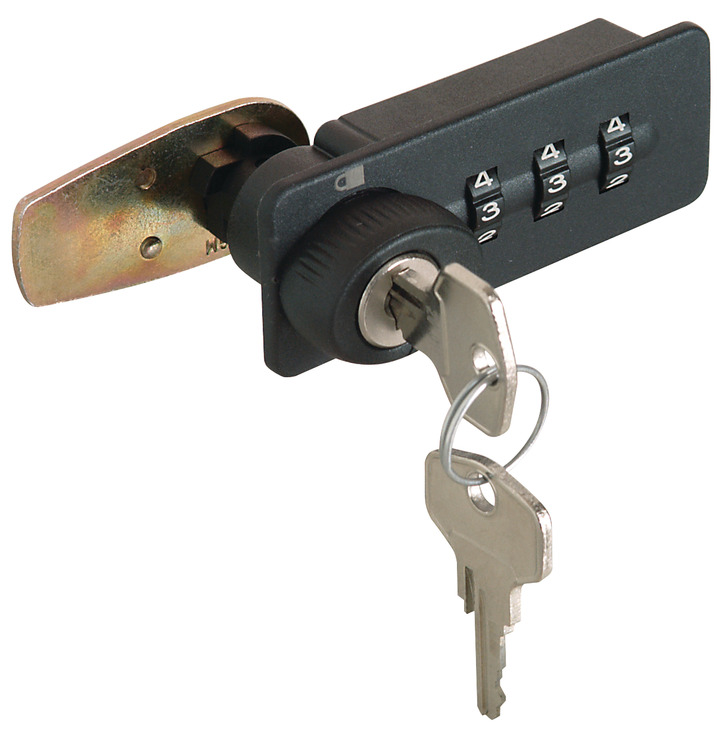

Hafele 231.16.311 Combination Lock, Combi-Code 1153 For cabinets and lockers, Horizontal left
Product Information
Description
Manufacturer: Hafele
Item: 231.16.311

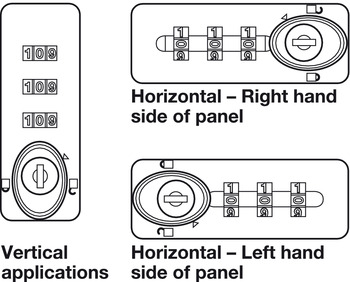

Product Title: Combination Lock, Combi-Code 1153, For cabinets and lockers, Horizontal left
Category: Combination Lock, Combi-Code 1153, For cabinets and lockers
Item Details …
- For thin materials such as metal, glass, etc. please see back plate adapter below.
- 3 dials replace the need for keys
- Private containers are secure with your own personal code
- Color/finish : Black, Cam: Galvanized
- Model series : 1153
- For wood thickness : 1/2 - 3/4"
- Data-driven technical data table :
- Material : Polyamide glass fiber reinforcedCam: Steel
- Installation reference : 3 dials replace the need for keysPrivate containers are secure with your own personal code
- with key : Yes
- Supplied with:
- 2 keys
- Straight cam with snap ring for attaching cam
- Back plate
- 2 mounting screws
- Installation instructionsData Sheet
Product Resources
Specifications
For detailed PDF specifications, click:
Hafele Catalog Page: selection_10.61-10.61.pdfHafele 231.16.311, 231-16-311, 23116311, 231.16
Specifications/Hafele Catalog - Page# FC10.65:
Click to: Show catalog here ...
Click to: Show catalog in a new page.
