Hafele 231.16.300 Combination Lock, Combi-Code 1157 For cabinets and lockers, Horizontal right

Product Information

• Description

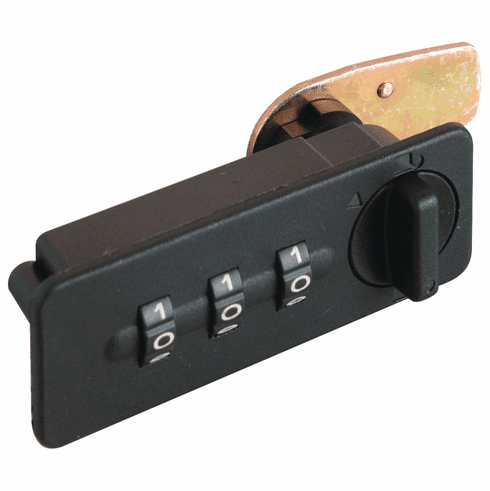

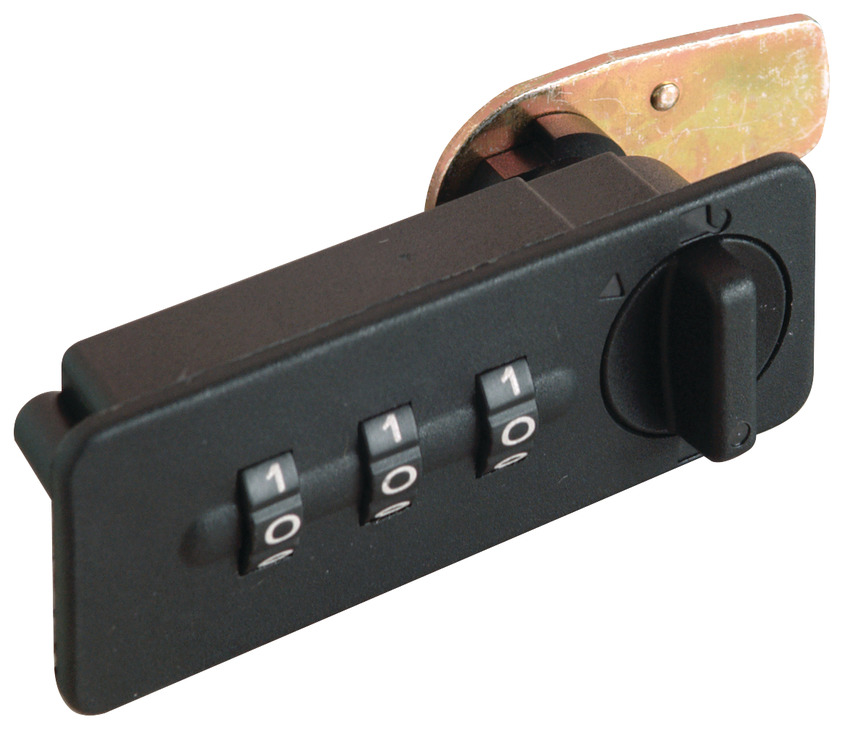

  Hafele 231.16.300 Combination Lock, Combi-Code 1157

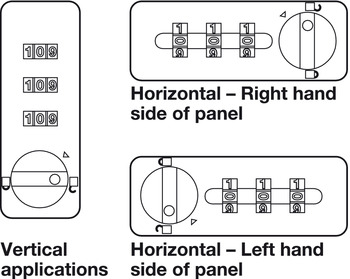

  For cabinets and lockers, Horizontal right



  Model series : 1157

  Key travel : Cam travel is 180°, and can be re-oriented

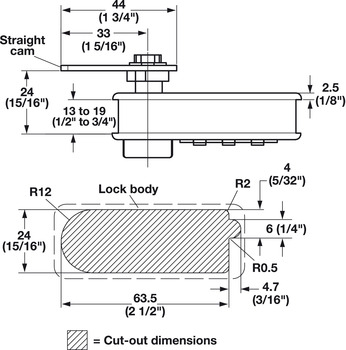

  For wood thickness : (1/2 - 3/4") 13 - 19 mm

  Material : Polyamide glass fiber reinforced
  Cam: Steel

  Finish : Cam: Galvanized

  Color : Black



  Supplied with :

  Straight cam with snap ring for attaching cam

  Back plate

  2 mounting screws

  Installation instructions



  Optional items:
  Back Plate Adapter, for Combi-Code Locks
  Codefinder, Combi-Code


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.61-10.61.pdf

  Hafele 231.16.300, 231-16-300, 23116300, 231.16
