Hafele 211.63.102 Push-Lock, Operated from one side Brown, plastic
Product Information
Description
Manufacturer: Hafele
Item: 211.63.102
Product Title: Push-Lock, Häfele Push-Lock, can be operated from one side, Without Catch Bolt, Brown, plastic
Category: Push-Lock, Häfele Push-Lock, can be operated from one side, Without Catch Bolt
Item Details …
- Well suited for the recreation or boating industry
- Locks operate by push button without a key
- All push button locks can be used in wet areas
- Push-Lock featuring push-button locking mechanism, used as a deadbolt lock for doors or drawers
- Version : Can be operated from one side or both

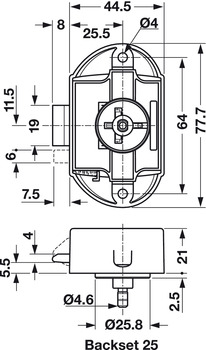

- Backset D : 25.00 mm
- Deadbolt throw dim. : 8.00 mm
- Type of locking : with push-button locking
- Installation : Screw-mounted
- Installation reference : When locked there is no protrusion of the knob
- with key : No
- Order reference
- For Push-Lock locks operated from one side the following are required: 1 push button and 1 rosette.Data Sheet
Product Resources
Specifications
Brand PDF Catalogs
Click on a Category to open a PDF catalog:
Sliding and Folding Catalog
Fineline Brochure
Free Flap Fittings Brochure
The Complete Architectural Hardware Catalog
Dialock In Hotels Catalog
Dialock System Catalog
IXConnect Invisible Heroes
One Room One Face Catalog
Architectural Hardware: American Standard Catalog
Closet Catalog
Decorative Wood Catalog
Cornerstone Catalog
Decorative Hardware Catalog
Kitchen Solutions Catalog
Loox5 Lighting Catalog
Furniture Cabinetry Hardware Catalog
Designing Accessibility HEWI Catalog
The Complete CabinetRequired Products & Optional Accessories
Optional Accessories:- Flat Head Screw, Hospa, countersunk head, PZ, fully threaded
- Shim, for Push Lock
- Round Rosette, for Push-Lock
Quick Metric Conversions: 25mm = 1 inch (approx), 2.5cm = 1 inch (approx), 96mm = 3.75 inches
