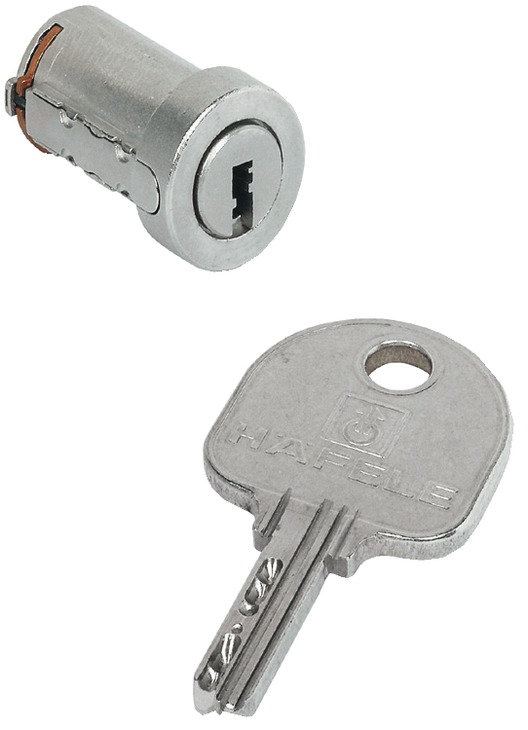

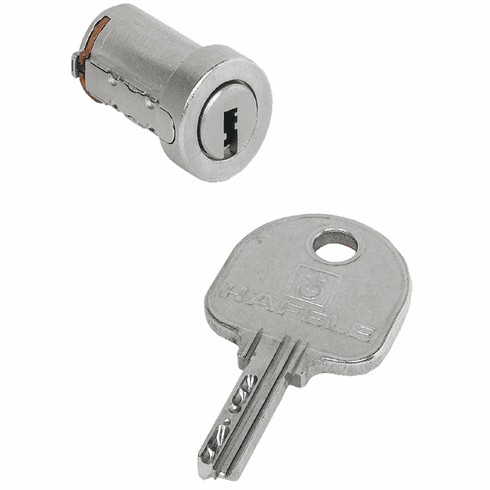

Hafele 210.45.605 STW Pin-Tumbler Cylinder Removable Core, Keyed Alike SYMO 3000, Key change: 005 A

Product Information

• Description

  Manufacturer: Hafele
  Item: 210.45.605

  Product Title: STW Pin-Tumbler Cylinder Removable Core, Keyed Alike, SYMO 3000, Key change: 005 A

  Category: STW Pin-Tumbler Cylinder Removable Core, Keyed Alike, SYMO 3000

  Item Details …

  - Locking system : Individual locking, standard profile

  - Closure type : Keyed alike

  - Mounting : Left hand or right hand

  - Key Type : Dimple key

  - Color/finish : Nickel plated

  - Area of application : For all locks and lock handles of the Symo system

  - Version : standard profile

  - Material : Lock case: Zinc alloy

  - Cylinder shape : round cylinder

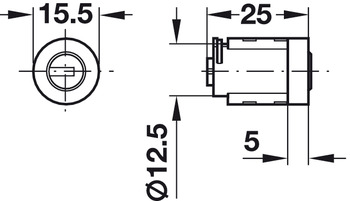

  - Cylinder length : 25.00 mm

  - Cylinder Diameter: (mm) : 12.50 mm

  - Type of locking : with 6 pin tumblers

  - Installation : For plug fitting

  - with key : Yes

  - Suitable for : standard profile


  Additional Information …

  Master keying and General Master key systems available upon request. Verify production time.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.25



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.24-10.25.pdf

  Hafele 210.45.605, 210-45-605, 21045605, 210.45


  Specifications/Hafele Catalog - Page# FC10.26: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Lockers & Locking Systems Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Cylinder Rosette, 3/4"
  • Removal Key, for Pin Tumbler Cylinders/dimple key
