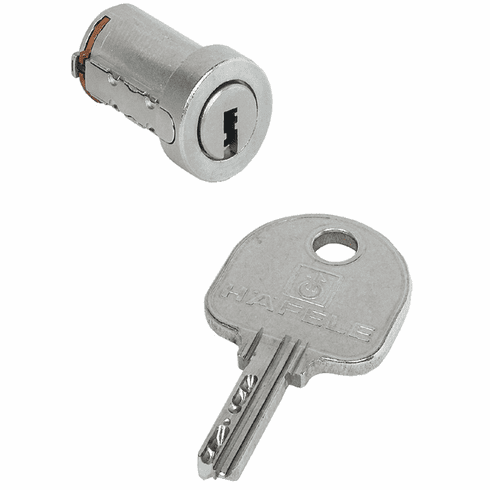

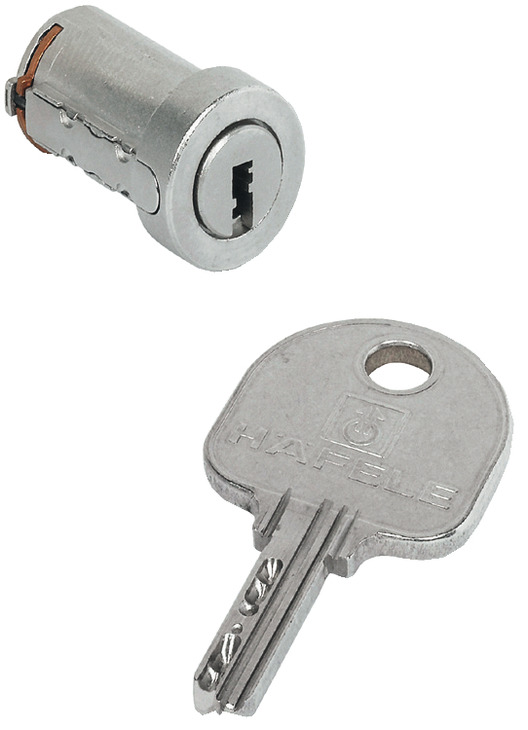

Hafele 210.45.602 STW Pin-Tumbler Cylinder Removable Core, Keyed Alike SYMO 3000, Key change: 002 A

Product Information

• Description

  Manufacturer: Hafele
  Item: 210.45.602

  Product Title: STW Pin-Tumbler Cylinder Removable Core, Keyed Alike, SYMO 3000, Key change: 002 A

  Category: STW Pin-Tumbler Cylinder Removable Core, Keyed Alike, SYMO 3000

  Item Details …

  - Locking system : Individual locking, standard profile

  - Closure type : Keyed alike

  - Mounting : Left hand or right hand

  - Key Type : Dimple key

  - Color/finish : Nickel plated

  - Area of application : For all locks and lock handles of the Symo system

  - Version : standard profile

  - Material : Lock case: Zinc alloy

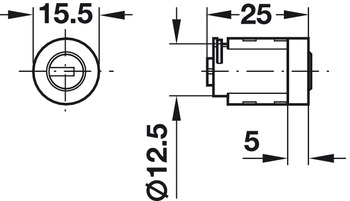

  - Cylinder shape : round cylinder

  - Cylinder length : 25.00 mm

  - Cylinder Diameter: (mm) : 12.50 mm

  - Type of locking : with 6 pin tumblers

  - Installation : Left or right, for plug fitting

  - with key : Yes

  - Suitable for : standard profile


  Additional Information …

  Master keying and General Master key systems available upon request. Verify production time.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.25



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.24-10.25.pdf

  Hafele 210.45.602, 210-45-602, 21045602, 210.45
