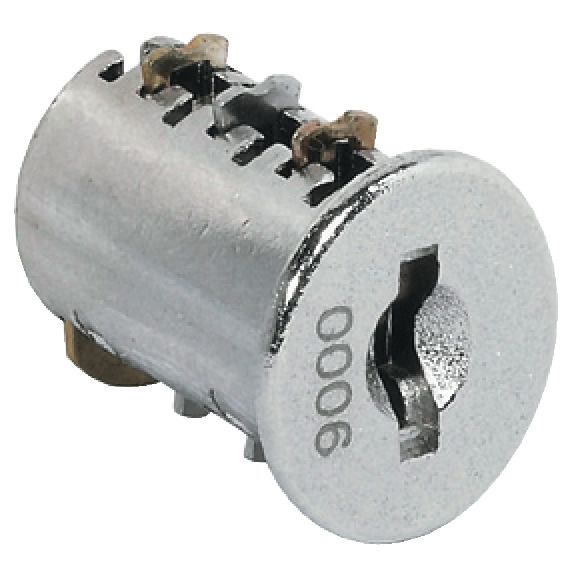

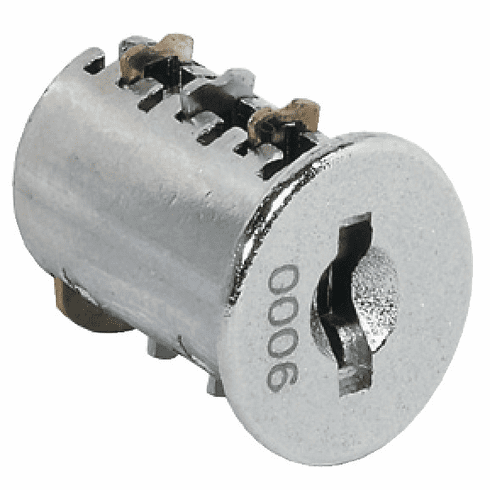

Hafele 210.41.602 Universal Cylinder Removable Core, Warehouse Locking Cylinder

Product Information

• Description

  Manufacturer: Hafele
  Item: 210.41.602

  Product Title: Universal Cylinder Removable Core, Warehouse Locking Cylinder, Plate cylinder without key, MK 2

  Category: ,

  Item Details …

  - Area of application : For all locks and lock handles of the Symo system

  - Version : Without key

  - Material : Zinc alloy housing,brass plate levers

  - Cylinder shape : round cylinder

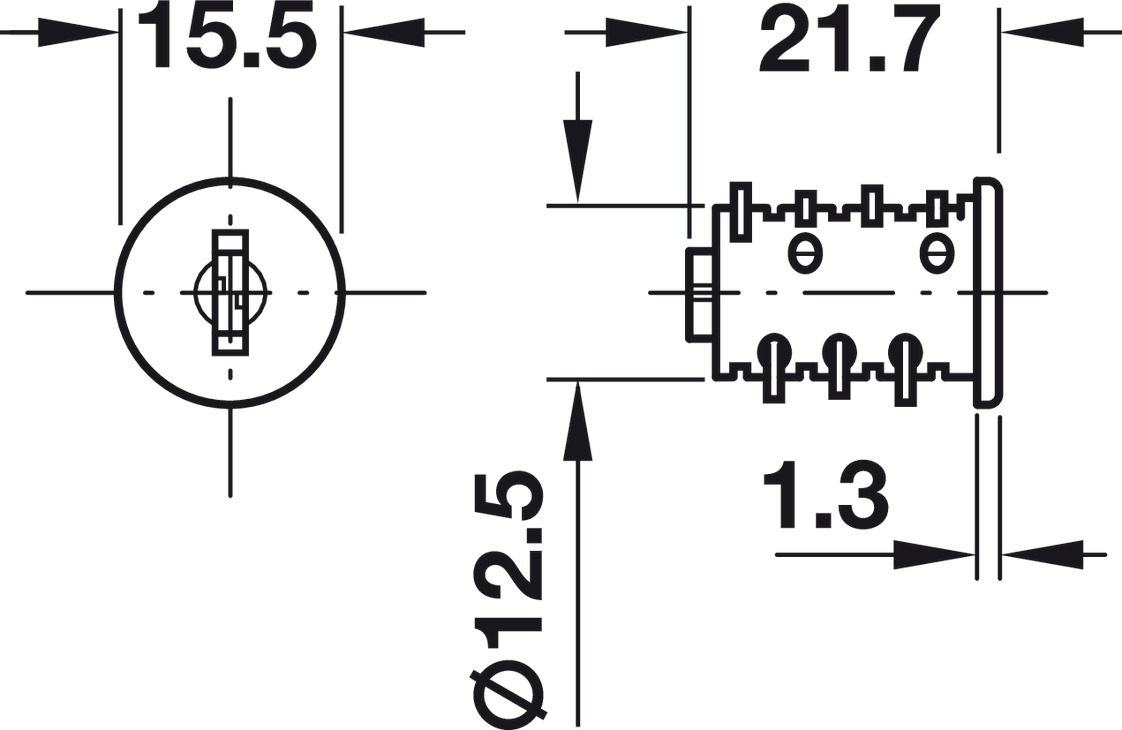

  - Cylinder length : 21.70 mm

  - Cylinder Diameter: (mm) : 12.50 mm

  - Type of locking : with 6 plate levers

  - Installation : For plug fitting

  - with key : No

  - Suitable for : Without key

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data



• Videos

• Required Products & Optional Accessories

  Optional Accessories:



  • Master Key, for Plate-Cylinders/Cut Key
  • Key Blank, Steel
  • Removal Blank, For Symo Universal cylinder core, warehouse locking system
  • Cylinder Rosette, 3/4"
