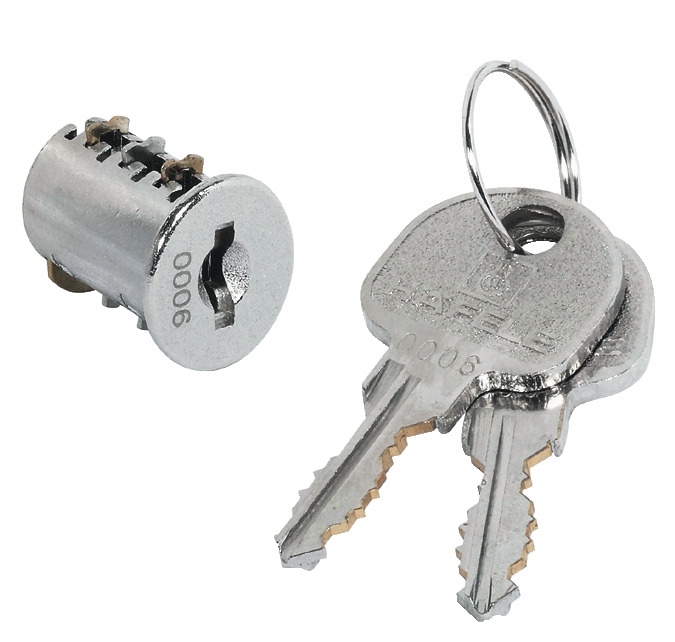

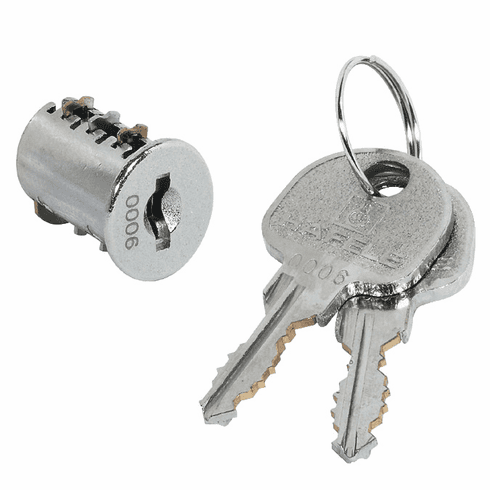

Hafele 210.40.634 Plate-Cylinder Removable Core, Keyed Alike, Symo 3000 Plate cylinder with key, SH34
Product Information
Description
Manufacturer: Hafele
Item: 210.40.634
Product Title: Plate-Cylinder Removable Core, Keyed Alike, Symo 3000, Plate cylinder with key, SH34
Category: ,
Item Details …
- Key change : 3,000 different key changes are possible
- Mounting : Left hand or right hand
- Key Type : Cut key
- Color/finish :
- Area of application : For all locks and rotary handles of the Symo system
- Version : Locking direction: left and right
- Material : Zinc alloy housing,brass plate levers
- Cylinder shape : round cylinder

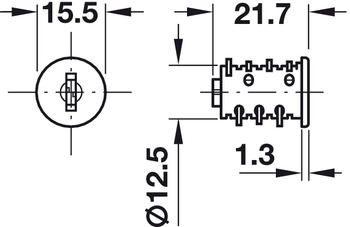

- Cylinder length : 21.70 mm
- Cylinder Diameter: (mm) : 12.50 mm
- Type of locking : with 6 plate levers
- Installation : For plug fitting
- with key : Yes
- Suitable for : All lock bodies within the SYMO 3000 systemData Sheet
Product Resources
Specifications
Hafele 210.40.634 Lock Symo Core Sh 34 Zn Nip (5X2X2 Cm)
Product Specifications:
Contact us for more information.Brand PDF Catalogs
