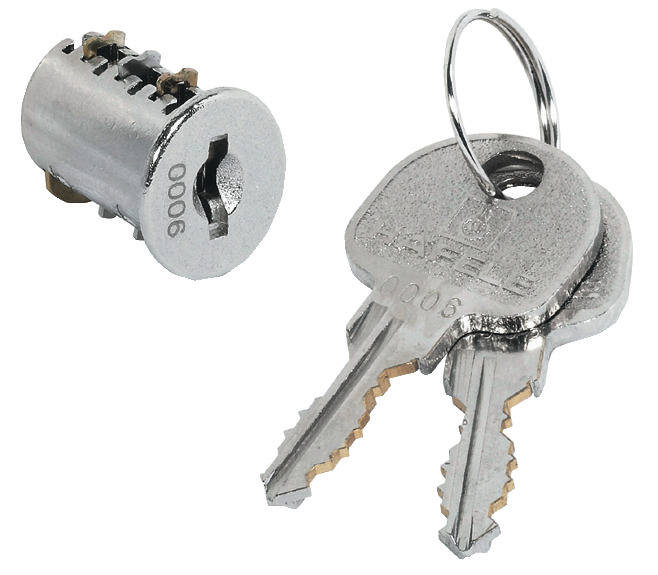

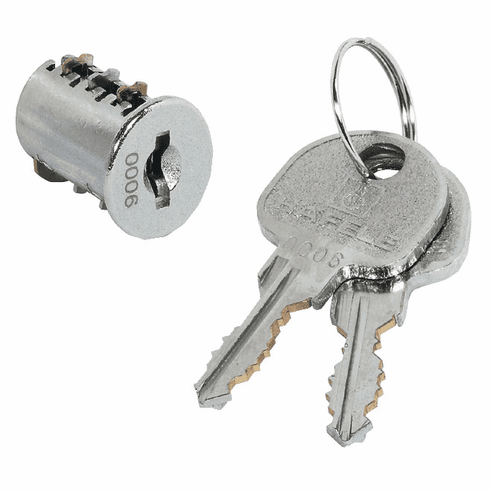

Hafele 210.40.600 Plate-Cylinder Removable Core, Keyed Different, Symo 3000 Plate cylinder with key, Nickel plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 210.40.600

  Product Title: Universal cylinder removable core, Häfele Symo, individual locking, Satin nickel, keyed different

  Category: Universal cylinder removable core, Häfele Symo, individual locking, Satin nickel, keyed different

  Item Details …

  - 2,600 different key changes possible

  - For all locks and lock handles of the Symo system

  - Individual locking with foldable key

  - Left or right hand installation, for plug fitting

  - Locking system : Individual locking

  - Key change : 2,600 different key changes are possible

  - Closure type : Keyed to differ

  - Mounting : Left hand or right hand

  - Color/finish : Satin nickel

  - Area of application : For all locks and lock handles of the Symo system

  - Version : With 2 folding keys

  - Material : Zinc alloy housing,brass plate levers

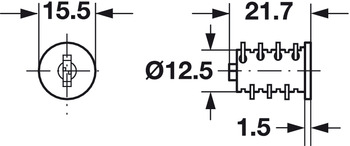

  - Cylinder shape : round cylinder

  - Cylinder length : 21.70 mm

  - Cylinder Diameter: (mm) : 12.50 mm

  - Type of locking : with 6 plate levers

  - Installation : For plug fitting

  - with key : Yes

  - Suitable for : With 2 folding keys

  - Order reference

  - Each package contains 50 cylinder cores out of the specified range of key changes, one piece of each key change.

  - Usable master key: MK 3 (Cat. No. 210.11.003), not supplied.

  - Supplied with:

  - 1 plate cylinder removable core

  - 2 keys
