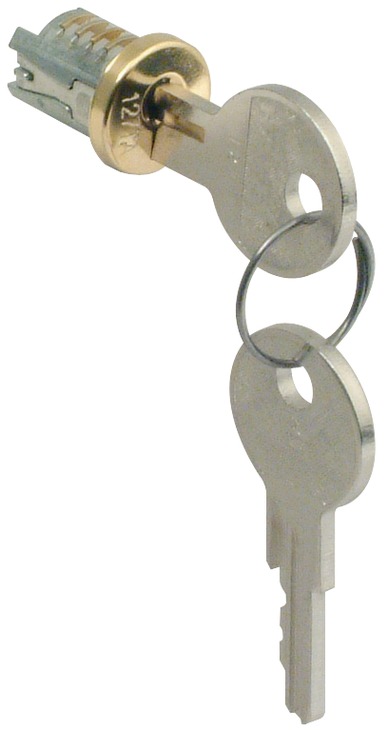

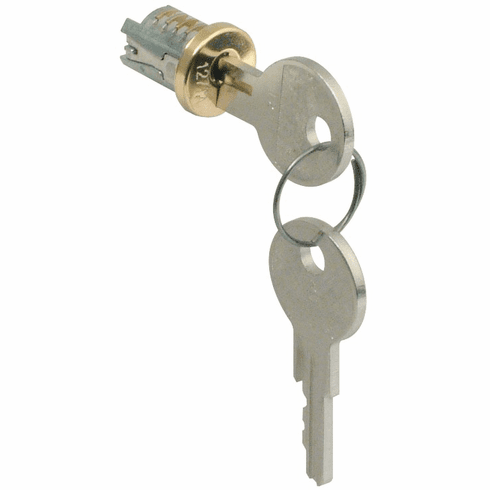

Hafele 210.14.193 Snap-In Lock Core, Keyed Alike Timberline- modular removable core locking system, Antique brass, key change 108TA

Product Information

• Description

  Manufacturer: Hafele
  Item: 210.14.193

  Product Title: Snap-In Lock Core, Keyed Alike, Timberline- modular removable core locking system, Antique brass, key change 108TA

  Category: Snap-In Lock Core, Keyed Alike, Timberline- modular removable core locking system

  Item Details …

  - Separates the lock core from cylinder housing

  - Any combination of locking systems can be obtained

  - Manufacturer can install fully functional locking systems

  - Simplifies the planning and changing of locking systems

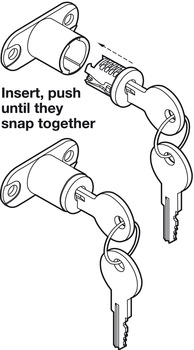

  - Lock cores can be replaced with the aid of the removal key

  - Version : 5 plate levers = 900 possible key changes

  - Locking system : Keyed alike

  - Material : Die-cast zincPlate levers: BrassKeys: Brass

  - Supplied with:

  - 2 keys


  Additional Information …

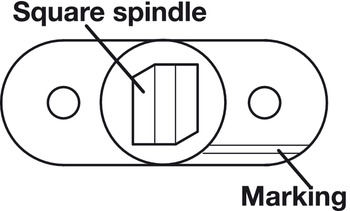

  The cylinder housings and lock cores are marked (see diagram). A series of furniture doors can all be locked with the same direction of turn if the markings are positioned identically.
