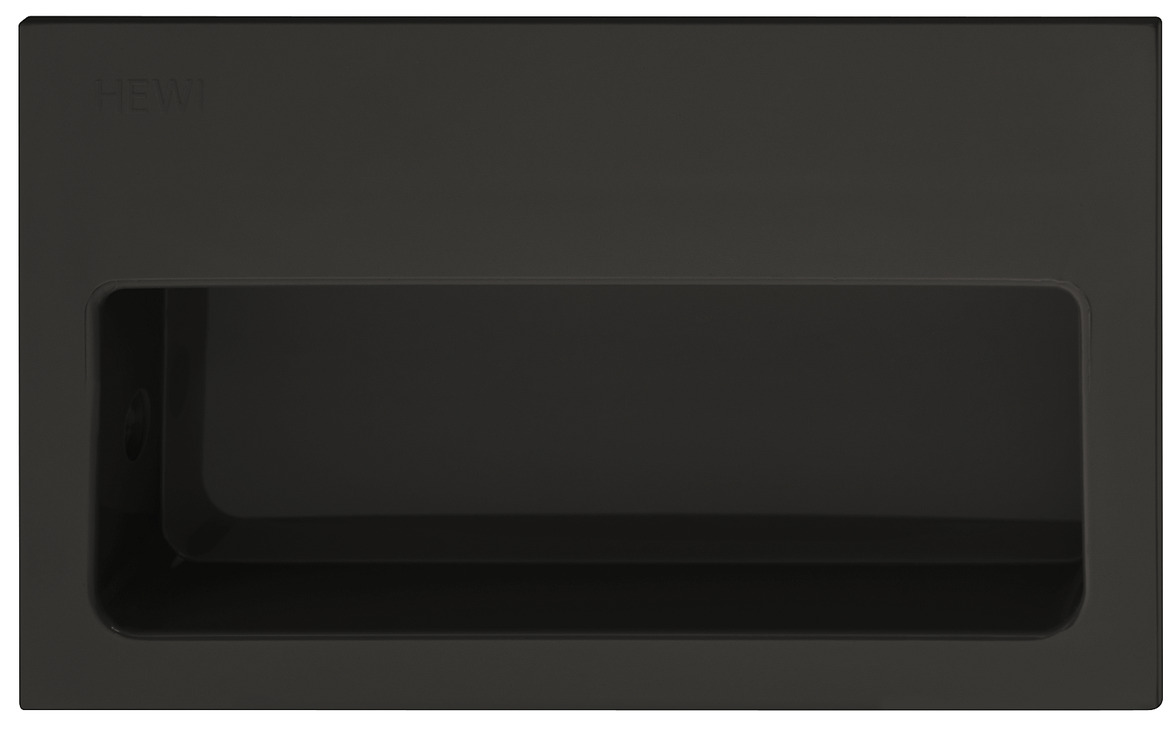

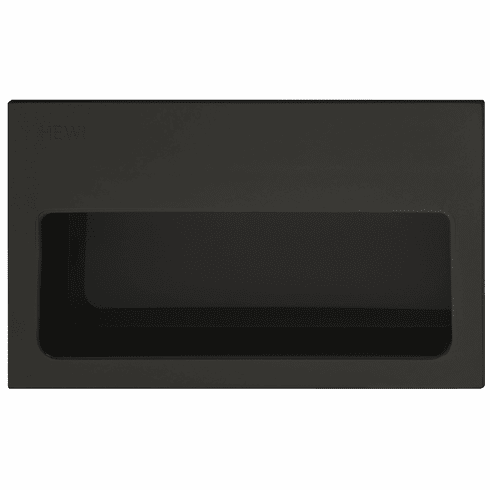

Hafele 158.88.090 Inset Handle, Polyamide, 100 x 60 x 15 mm (L x H x D) for wooden sliding doors, glossy jet black

Product Information

• Description

  Manufacturer: Hafele
  Item: 158.88.090

  Product Title: Inset Handle, Polyamide, 100 x 60 x 15 mm (L x H x D), HEWI, For sliding wooden doors, Glossy jet black

  Category: Inset Handle, Polyamide, 100 x 60 x 15 mm (L x H x D), HEWI, For sliding wooden doors

  Item Details …

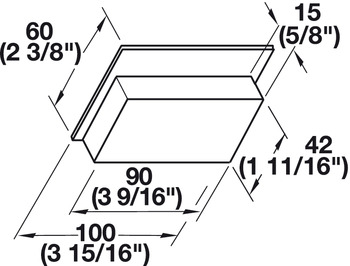

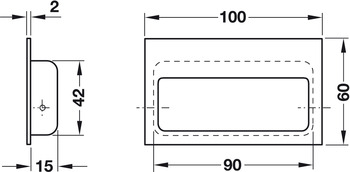

  - External dimensions : 100 x 60 mm

  - Housing dimensions : 90 x 42 mm

  - Housing depth : 15.00 mm

  - Hole spacing mm : 90 mm

  - Clearance : 2.00 mm

  - Material : Polyamide

  - Order reference

  - Please order countersunk head screws Ø 2.5 mm separately.
