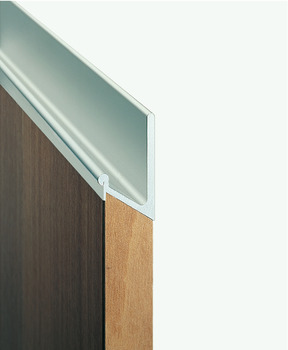

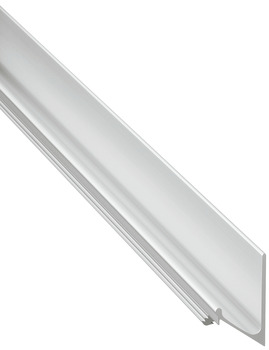

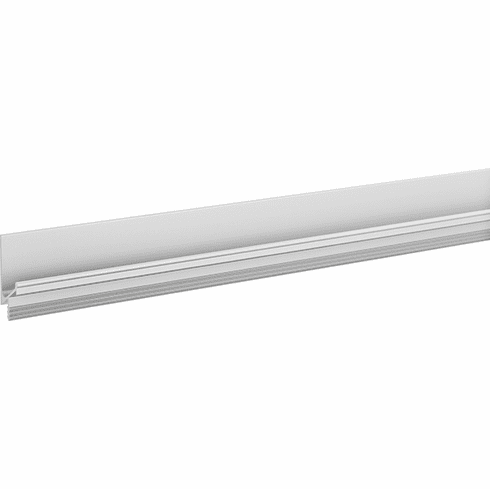

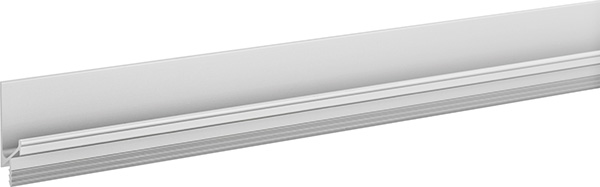

Hafele 126.35.925 Continuous Handle, Anodized Silver, Matt aluminum 2500 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 126.35.925

  Product Title: Griff-Profilleiste, aus Aluminium, Retuschierstift 007.33.062 ist speziell auf silberfarbene Aluprofile abgestimmt, Length: 2,500 mm, harpoon-type flange not notched

  Category: Griff-Profilleiste, aus Aluminium, Retuschierstift 007.33.062 ist speziell auf silberfarbene Aluprofile abgestimmt, Length: 2,500 mm, harpoon-type flange not notched

  Item Details …

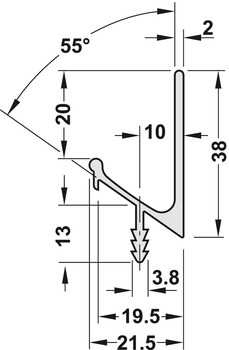

  - Length : 2,500.00 mm

  - Effective length : 2,400.00 mm

  - Depth : 21.50 mm

  - Width : 38.00 mm

  - Profile thickness : 2.00 mm

  - Color/finish : Silver colored, anodized E6/EV1

  - Material : Aluminum

  - Finish code : 106AL37


  Additional Information …

  Up to and including lengths of 1195 mm, the harpoon-type flange is notched 10 mm at the side. The harpoon-type flange is not notched at the side with length 2,500 mm.Harpoon-type flange not notched

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Decorative_Catalog_2024|Page 1.224



• Specifications



  Click here to open "HAFELE Decorative Hardware Catalog Page#173" in a separate window.




• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Continuous Handle, Aluminum
