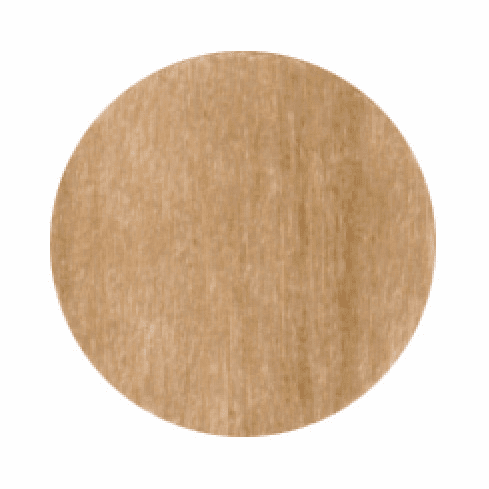

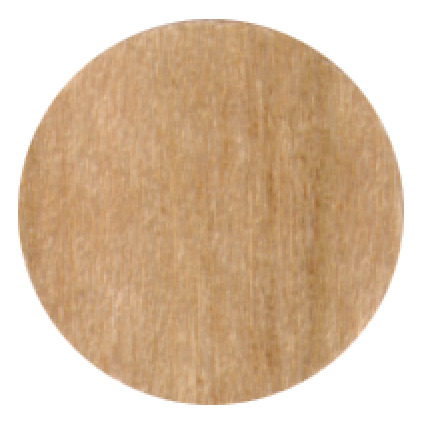

Hafele 045.24.601 Cover Cap, Capfix, Self-Adhesive, Wood, Finished Cherry, 14 mm
Product Information
Description
Manufacturer: Hafele
Item: 045.24.601
Product Title: Cover Cap, Capfix, Self-Adhesive, Wood, Finished, For screw heads or Minifix connector housing, Cherry, 14 mm
Category: Cover Cap, Capfix, Self-Adhesive, Wood, Finished, For screw heads or Minifix connector housing
Item Details …
- Can be sanded, stained and finished to match hard and softwood
- Peel: 28.3N/2.5 cm
- Ultimate peel: 36.2N/2.5 cm
- Temperature application: 12.5°C
- Temperature resistance: 40-121°C
- Release liner: 98 GSM
- Real wood, can be cut to fit

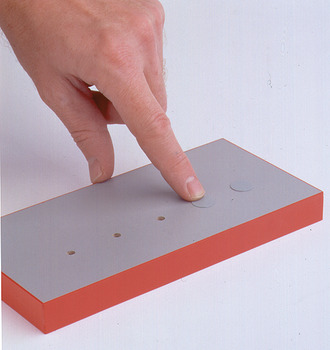

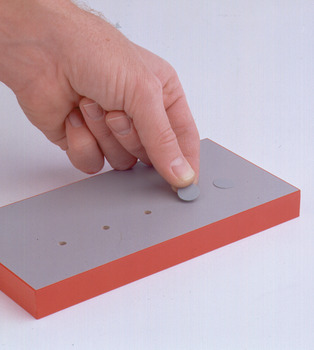

- Easy to apply without caulking or extra glue
- Same texture, color and appearance of industry standard sheet goods
- Provides durable, attractive coverage
- Thickness: 0.90 mm
- Hold: 13.8 KPQ

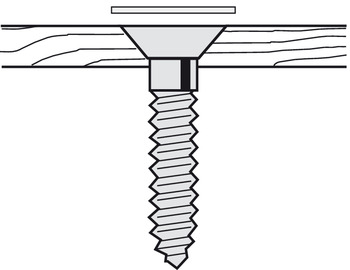

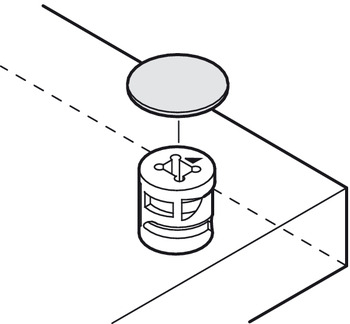

- Area of application : For covering screw heads or Minifix® connector housings
- Material : Wood
- Head Ø : 14.00 mm
- Head height : 0.90 mm
- Installation : for glue fixingData Sheet
Specifications
Hafele 045.24.601, 045-24-601, 04524601, 045.24
Specifications/Hafele Catalog - Page# FC11.165:
