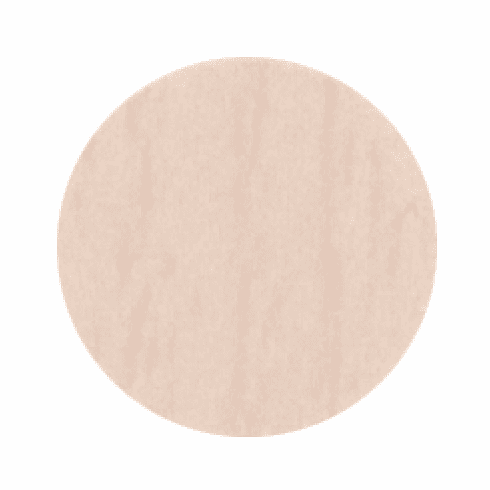

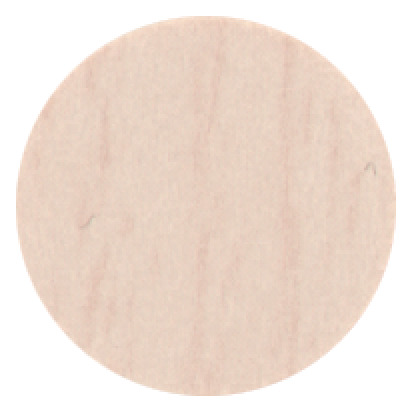

Hafele 045.24.100 Cover Cap, Capfix, Self-Adhesive, Wood, Unfinished for screw heads or Minifix connector housing, maple

Product Information

• Description

  Manufacturer: Hafele
  Item: 045.24.100

  Product Title: Cover Cap, Capfix, Self-Adhesive, Wood, Unfinished, For screw heads or Minifix connector housing, Maple

  Category: Cover Cap, Capfix, Self-Adhesive, Wood, Unfinished, For screw heads or Minifix connector housing

  Item Details …

  - Can be sanded, stained and finished to match hard and softwood

  - Peel: 28.3N/2.5 cm

  - Ultimate peel: 36.2N/2.5 cm

  - Temperature application: 12.5°C

  - Temperature resistance: 40-121°C

  - Release liner: 98 GSM

  - Real wood, can be cut to fit

  - Easy to apply without caulking or extra glue

  - Same texture, color and appearance of industry standard sheet goods

  - Provides durable, attractive coverage

  - Thickness: 0.90 mm

  - Hold: 13.8 KPQ

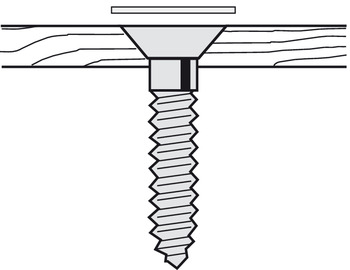

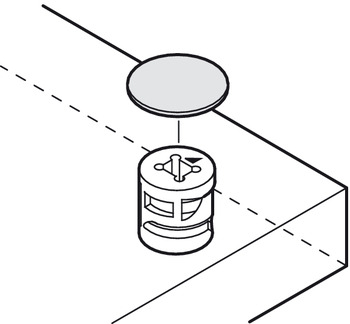

  - Area of application : For covering screw heads or Minifix® connector housings

  - Head height : 0.50 mm

  - Installation : for glue fixing

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 12.22



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.163-11.166.pdf

  Hafele 045.24.100, 045-24-100, 04524100, 045.24


  Specifications/Hafele Catalog - Page# FC11.165: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
