Hafele 022.35.181 Threaded Screw, Flat head, M4 combination cross slot, head 10 mm, galvanized Length: 18 mm (11/16")

Product Information

• Description

  Manufacturer: Hafele
  Item: 022.35.181

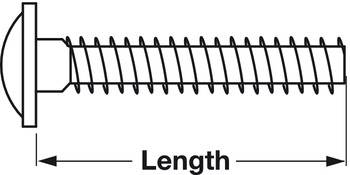

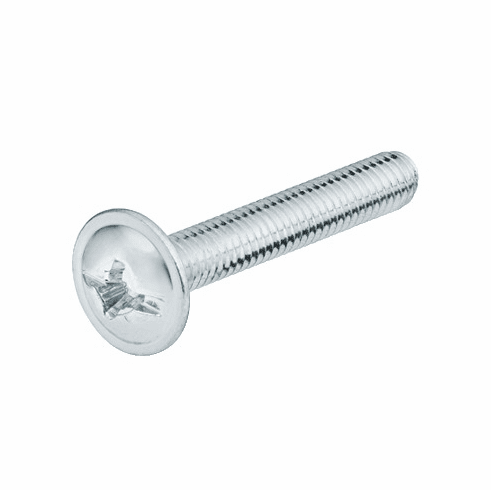

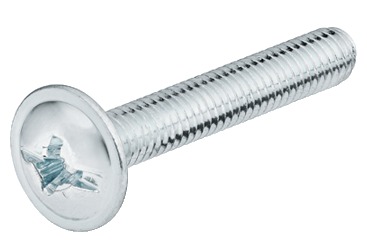

  Product Title: Threaded Screw, Modified Truss Head, M4 combination cross slot, head Ø 10 mm, zinc plated, Steel, Length: 18 mm (11/16")

  Category: Modified Truss Head Screw, M4, Combination Cross/Slot Drive, Steel

  Item Details …

  - Thread Ø : M4

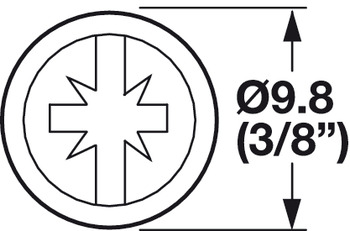

  - Head Ø : 10.00 mm

  - Area of application : e.g. for mounting furniture handles and knobs

  - Material : Steel

  - Drive : PZ/flat blade cross slot

  - Thread : Fully Threaded

  - Order reference

  - Orga-box = 100 pcs

  - Big-pack = 1,000 pcs

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 12.17

  Decorative_Catalog_2024|Page 1.340



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.155-11.156.pdf

  Hafele 022.35.181, 022-35-181, 02235181, 022.35
