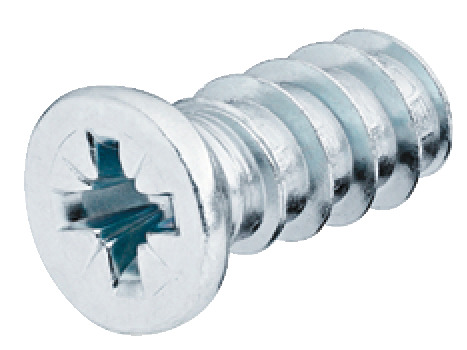

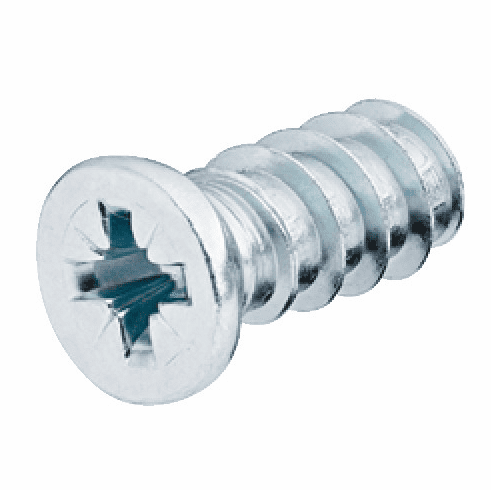

Hafele 013.20.912 Euro screw, with Special Cylinder Head, #2 Pozi Drive, Shop Pack Length: (7/16") 11 mm, zinc

Product Information

• Description

  Manufacturer: Hafele
  Item: 013.20.912

  Product Title: Euro screw, with Special Cylinder Head, #2 Pozi Drive, Bulk Pack, Length: (7/16") 11 mm, zinc

  Category: Euro screw, with Special Cylinder Head, #2 Pozi Drive, Bulk Pack,

  Item Details …

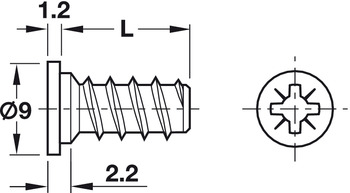

  - Material : Steel

  - Thread Ø : 6.20 mm

  - Thread : Fully Threaded

  - Type of head : Cylindrical head

  - Drive : PZ cross slot

  - For drill hole Ø : 5.00 mm

  - Area of application : for screwing into wood, for Variant drawer runners, cruciform mounting plates, cabinet connectors and connecting fittings


  Additional Information …

  Processing reference for installing Grass concealed hinges:Chipboard and MDF: Euro cylinder screw Ø 6.3 x 10.5 mm:1. Drill Ø 5 mm drill hole.2. Fit hinge and secure with screws.Depending on the type and thickness of the supporting material, the pull out resistance may vary even with the same fixing method.With regard to the selection and processing of the supporting material is concerned, please contact your supporting material supplier.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 12.16



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.142-11.142.pdf

  Hafele 013.20.912, 013-20-912, 01320912, 013.20


  Specifications/Hafele Catalog - Page# FC11.151: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
