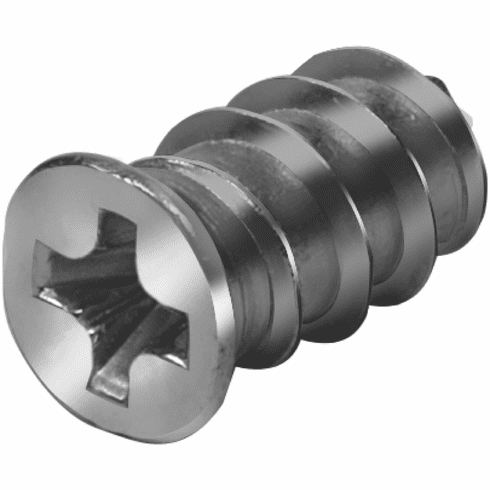

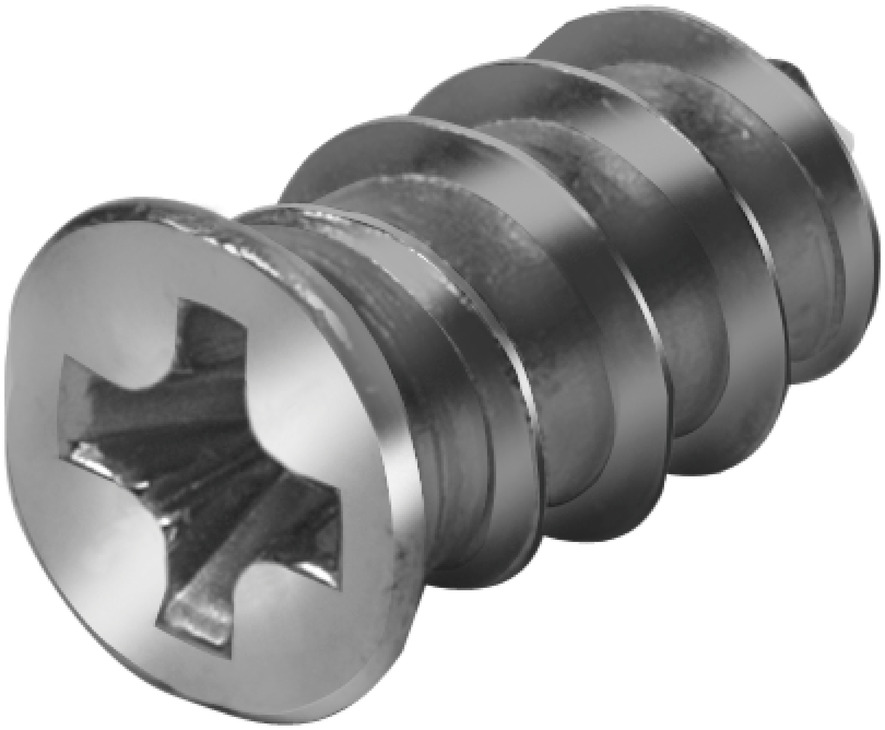

Hafele 012.51.733 Euro screw,, Varianta, countersunk head, PZ2, steel, for screwing into wood For drill holes with dia 5 mm, Phillips Drive; Length 16 mm (5/8"), 5000 pcs

Product Information

• Description

  Manufacturer: Hafele
  Item: 012.51.733

  Product Title: Euro screw, Häfele, Varianta, countersunk head, Steel, For drill holes with Ø 5 mm, Phillips Drive; Length 16 mm (5/8"), 5000 pcs

  Category: Euro screw, Häfele, Varianta, countersunk head, Steel, For drill holes with Ø 5 mm

  Item Details …

  - Material : Steel

  - Color/finish : Nickel plated

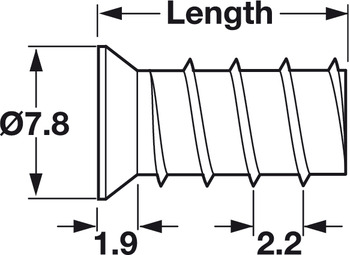

  - Thread Ø : 6.20 mm

  - Thread : Fully Threaded

  - Type of head : Countersunk head

  - Drive : PZ cross slot

  - For drill hole Ø : 5.00 mm

  - Packing unit :

  - Area of application : For Hinge Mounting Plates, Tab, Tab-V, and Keku ConnectorsFor 5 mm system holes

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 12.16



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.142-11.142.pdf

  Hafele 012.51.733, 012-51-733, 01251733, 012.51


  Specifications/Hafele Catalog - Page# FC11.151: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Cover Cap, Plastic, for countersunk head with PZ 2 cross slot drive
