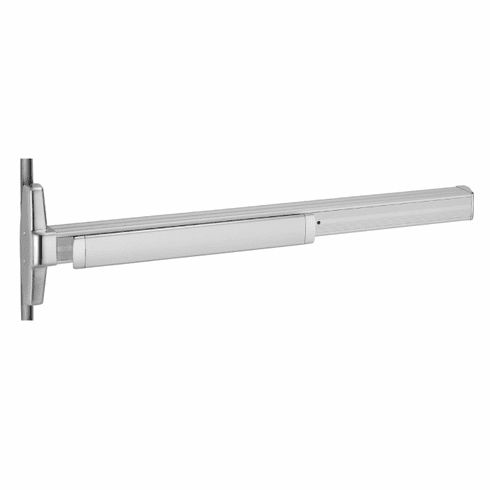

VON DUPRIN 3347A-EO-3FT-26D 3347A-Eo Concealed Vertical Rod Exit Device

Product Information

• Description

  VON DUPRIN 3347A-EO Concealed Vertical Rod Exit Device
  3347A-EO CVR, Exit Only (No Outside Trim), 3' Device, Up To 8'4" Door Height, US26D Satin Chrome



  • Series: 33A_Pushbar
  • Description: 33 Series Push Bar, CVR, Exit Only (no outside trim), 3' device. US26D Satin Chrome
  • Finish: 626_US26D_Satin_Chrome
  • Function: exit_only



  Length: 3 Foot Device

  Case Qty: 2

  Device Type: Concealed Vertical Rod Device

  Product Type: Exit Device

  Dogging Options: Hex Key Dogging

  Included Components: Fasteners and Sex Bolts (SNB)

  Features: Grooved Case; Narrow Stile Push Pad; The Quiet One(R) Fluid Damper

  Standards: ANSI A156.3 2008 Grade 1

  Bolt Throw: 5/8 Inch

  Latch Type: Deadlocking

  Application: Single and Double Doors

  Finish Code: 626/US26D

  Stile Width: 2-1/8 Inch

  Strike Type: Top: 388 Unfinished, Bottom: 385A Unfinished

  ADA Compliant: No

  ANSI Function: 01

  Device Rating: Panic Exit Hardware

  Door Material: Metal; Wood

  Finish Family: Satin Chrome

  For Door Width: 2 Foot 4 Inch to 3 Foot

  For Door Height: 100 Inch

  Function Family: Exit Only-No Trim

  For Door Thickness: 1-3/4 Inch to 2-1/4 Inch

  Device Trim Function: No Outside Trim

  Function Description: Exit Only - No Trim

  Device Bar Projection: Pushbar Neutral: 3-13/16 Inch; Pushbar Depressed: 3-1/16 Inch

  Center Case Dimensions: 8-13/16 Inch x 2-13/32 Inch x 1-9/16 Inch

  Device Trim ANSI Function: 01

  Mechanism Case Dimensions: 2-1/4 Inch x 2-1/4 Inch

  Recommended Door Undercut: 1/4 Inch

  Device Centerline From Finished Floor: 39-13/16 Inch

  Stile: Narrow Stile

  Finish: 626/US26D-Satin Chrome

  Series: 3347A Pushbar

  Function: Exit Only

  Door Height: Up to 8 Foot 4 Inches

  Device Length: 36 Inch (3 Foot)

  Fire Rated: No

  Finish Description: Satin Chrome

  Manufacturer Parent: Allegion

  ANSI Function: 01
