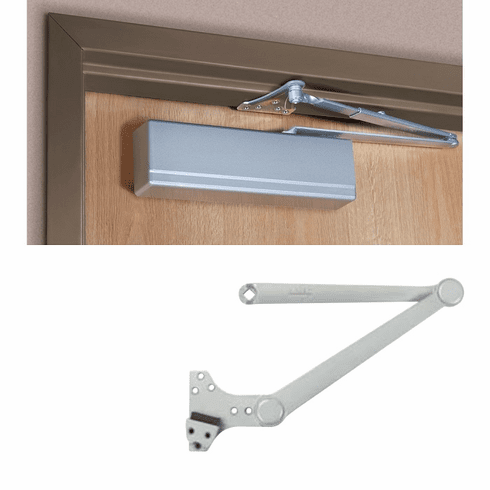

SARGENT 351-CPS-EN-TB 351 Power Glide Lin Surface Closer

Product Information

• Description

  SARGENT 351 Power Glide Lin Surface Closer
  Powerglide Closer, With TB-Through Bolt, EN-Sprayed Aluminum Finish



  • Series: 351
  • Description: Powerglide. TB Through Bolt. EN Aluminum enamel/polyester powder coated.
  • Finish: 689_ALUM_SP28_Aluminum
  • Grade: ANSIBHMAGRADE1
  • Function: hd_pa_compression_stop_arm



  Product Type: Door Closer/Holder/Stop

  Closer Arm Construction: Forged Steel

  Hand: Non-Handed

  Features: Through Bolting; Standard Pressure Relief Valves for Both Opening and Closing Cycles Protect the Door and Frame From Damage Caused by Abuse; Heat Treated Full Closed Rack and Pinion Provide Control From the Full Open Position

  Warranty: 30 Year Limited Warranty

  Door Size: 1-3/4" x 7'

  Fasteners: Machine Screws and Self Tapping Screws

  Standards: Grade 1 - ANSI/BHMA A156.4; UL 10C Listed; UL / cUL Listed for Use on Fire Rated Doors

  Templating: Self Sticking

  Application: Highly Trafficked Environments; Schools; Healthcare Facilities; Office and Commercial Buildings; Interior and Exterior Applications

  Finish Code: 689/ALUM/SP28

  Closer Fluid: All Weather Fluid

  ADA Compliant: Yes

  Finish Family: Aluminum

  Mounting Type: Parallel Arm (Push Side) Mount

  Product Width: 2-3/16 Inch

  Product Length: 13 Inch

  Door Thickness: 2-1/4 Inch

  Product Height: 3-7/8 Inch

  Closer Arm Type: Heavy Duty Parallel Arm with Compression Stop

  Function Family: Non Hold Open Door Closer

  Product Material: Die Cast Aluminum Silicon Alloy

  Maximum Door Opening: Standard: 120°; Alternate: 180°

  Closer Piston Diameter: 1-1/2 Inch

  Grade: ANSI/BHMA Grade 1

  Finish: 689/ALUM/SP28-Aluminum Painted

  Series: 351 Series

  Handing: Non-Handed

  Function: HD Parallel Arm-Compression Stop

  Spring Size: Adjustable 1-6

  Closer Cover: Plastic Cover

  Finish Description: Aluminum Painted

  Manufacturer Parent: Assa Abloy
