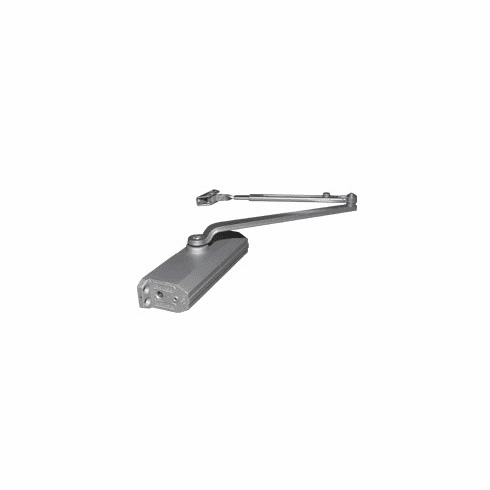

NORTON 1601-689 1600 Series Surface Door Closer

Product Information

• Description

  NORTON 1600 Series Surface Door Closer
  Adjustable Sizes 1 Thru 6, Tri Packed, Regular Arm, 689 Aluminum Finish



  • Series: 1601
  • UPC: 049306083843
  • Description: Adjustable Sizes 1 Thru 6, Tri Packed, Regular Arm, 689 Aluminum Finish
  • Finish: 689_ALUM_SP28_Aluminum
  • Grade: ANSIBHMAGRADE1
  • Function: Tri_Pack_Non_Hold_Open



  Case Qty: 6

  Product Type: Door Closer/Holder/Stop

  UPC: 049306083843

  Hand: Non-Handed

  Features: Independent Latch; Sweep and Backcheck Intensity Valves to Ensure Positive Control; Quick Adjust Slide Arm for Easy Installation and Adjustment

  Warranty: 30 Year Limited Warranty

  Door Size: 42" (Interior); 36" (Exterior)

  Fasteners: Self Drilling Screws

  Standards: Grade 1 - ANSI BHMA

  Application: Aluminum Storefronts; Office Doors; Utility Closets; Storage Rooms

  Finish Code: 689/ALUM/SP28

  Closer Fluid: NorGlide

  ADA Compliant: Yes

  Finish Family: Aluminum

  Mounting Type: Push or Pull Side Mount

  Product Width: 2-7/8 Inch

  Product Length: 9-3/4 Inch

  Door Thickness: 1-3/4 Inch

  Product Height: 2-5/8 Inch

  Closer Arm Type: Regular Arm

  Function Family: Non Hold Open Door Closer

  Closer Clearance: 1-1/2 Inch

  Product Material: Cast Aluminum

  Maximum Hold-Open: 180°

  Minimum Hold-Open: 90°

  Mounting Hole Size: 3/4" x 9-1/16"

  Maximum Door Opening: 180°

  Closer Pinion Diameter: 5/8 Inch

  Closer Piston Diameter: 1-3/8 Inch

  Closer Fluid Temperature Range: Extremely High to as Low as -40°F

  Grade: ANSI/BHMA Grade 1

  Finish: 689/ALUM/SP28-Aluminum Painted

  Series: 1601 Series

  Handing: Non-Handed

  Function: Tri-Packed Non-Hold Open Arm

  Spring Size: Adjustable 1-6

  Closer Cover: Without Cover

  Finish Description: Aluminum Painted

  Manufacturer Parent: Assa Abloy
