HES 1500C-630 1500 Series Electric Strike Complete Pack

Product Information

• Description

  HES 1500 Series Electric Strike Complete Pack

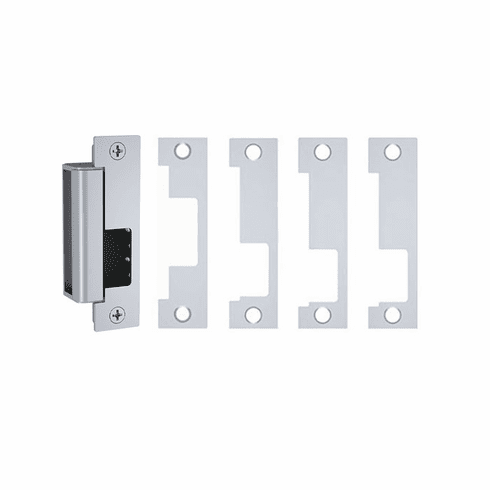

  Complete Electric Strike for Latchbolt Locks, Dual Voltage 12/24 VDC/VAC, Includes 1J, 1K, 1KD, and 1KM Faceplates, 630 Satin Stainless Steel



  • Series: 1500_Series
  • Description: For Latchbolt Locks, 630 Satin Stainless Steel
  • Finish: 630_US32D_Satin_Stainless_Steel



  Product Type: Electric Strike

  Included Components: 1LB Faceplate Kit

  UPC: 0740090017549

  Voltage: 12/24VAC/DC

  Features: Tamper Resistant; Endurance 1 Million Cycles; Non-Handed; Field Adjustable Integrated Shim; Windstorm Resistant; Outdoor Rated; Burglary Rated; POE Friendly

  Strength: 1500 (Static); 70 (Dynamic) lb; ft-lb

  Warranty: SecuriCare 5 Year

  Standards: ANSI/BHMA A156.31, Grade 1; UL 1034 Listed; UL 294 Listed; RoHS Compliant; UL10C Listed; CAN/ULC-S104 Fire Door Conformant; NFPA-252 Fire Door Compliant; ASTM-E152 Fire Door Compliant; California Fire Marshal Listed; ANSI/SDI A250.13; ANSI-ASTM E330

  Application: Metal and Wood Frame

  Finish Code: 630/US32D

  Current Draw: 240mA; 120mA

  For Use With: All Brands of Cylindrical and Mortise Locksets Without a Deadbolt

  ADA Compliant: No

  Finish Family: Satin Stainless Steel

  Mounting Type: Surface Mount

  Product Length: 4-7/8 Inch

  Product Height: 1-3/8 Inch

  Function Family: Electric Strike

  Product Material: Stainless Steel

  Country of Origin: United States

  Faceplate Dimension: 4-7/8" x 1-1/4"

  Finish: 630/US32D-Satin Stainless Steel

  Series: 1500C Series

  Function: Electric Strike

  Finish Description: Satin Stainless Steel

  Manufacturer Parent: Assa Abloy
